U6359B

Features: · Integrated prescaler ÷ 8 with preamplifier· Input frequency maximum 1024 MHz· Tuning frequency steps 62.5 kHz· 14-bit programmable counter· Reference oscillator with 4 MHz crystal and ÷ 512 counter· Phase detector (reference frequency 7.8125 kHz)· 4 programmable port driver· Lock outpu...

product image

U6359B Picture
See larger image
SeekIC No. : 004535010 Detail

U6359B: Features: · Integrated prescaler ÷ 8 with preamplifier· Input frequency maximum 1024 MHz· Tuning frequency steps 62.5 kHz· 14-bit programmable counter· Reference oscillator with 4 MHz crystal and ÷ ...

U6359B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U6359B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Integrated prescaler ÷ 8 with preamplifier
· Input frequency maximum 1024 MHz
· Tuning frequency steps 62.5 kHz
· 14-bit programmable counter
· Reference oscillator with 4 MHz crystal and ÷ 512 counter
· Phase detector (reference frequency 7.8125 kHz)
· 4 programmable port driver
· Lock output
· Microcomputer controlled via 3-wire bus
· SO20 package


Pinout

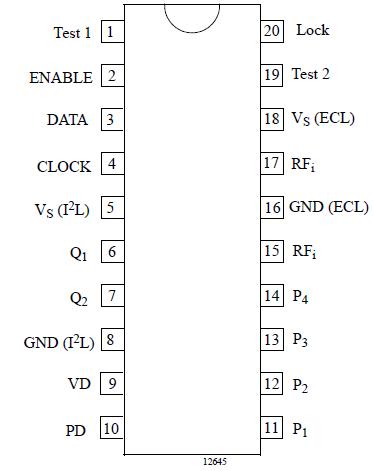

Connection Diagram


Specifications

Reference point Pin 8, 16
Parameters
Symbol
Value
Unit
Supply voltage Pins 5 and 18
VS
6
V
Input voltage range Pins 15 and 17
VRFi
0toVS
V
Junction temperature
Tj
125
Ambient temperature range
Tamb
-10to+65
Storage temperature range
Tstg
-40to+125



Description

The U6359B is a single chip PLL frequency synthesizer with 3-wire bus control. U635H16 contains an integrated preamplifier, a high frequency prescaler, a reference frequency divider, a crystal oscillator, a phase/frequency detector together with a charge pump, a tuning voltage amplifier and 4 output ports.
