Product Details

Description

Features:

· Pulse width modulation up to 2 kHz clock frequency
· Protection against short circuit, load-dump overvoltage and reverse V_S
· Duty cycle 0 to 100 % continuously
· Output stage for power MOSFET
· Interference and damage protection according to VDE 0839 and ISO/TR 7637/1.
· Charge pump noise suppressed
· Ground wire breakage protection

Pinout

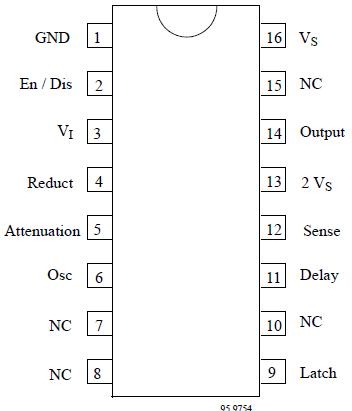

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Junction temperature	T_j	150
Ambient temperature range	T_amb	40to +110
Storage temperature range	T_stg	55to +125

Description

The U6084B is a bipolar technology PWM-IC designed for the control of an N-channel power MOSFET used as a high-side switch. The IC is ideal for use in the brightness control (dimming) of lamps such as, in dashboard applications. For a constant brightness the preselected duty cycle of U6084B can be reduced automatically as a function of the supply voltage
