Product Details

Description

Features:

• Pulse-width Modulation up to 2 kHz Clock Frequency
• Protection Against Short-circuit, Load Dump Overvoltage and Reverse V_S
• Duty Cycle 18 to 100% Continuously
• Internally Reduced Pulse Slope of Lamp's Voltage
• Interference and Damage Protection According to VDE 0839 and ISO/TR 7637/1
• Charge-pump Noise Suppression
• Ground-wire Breakage Protection

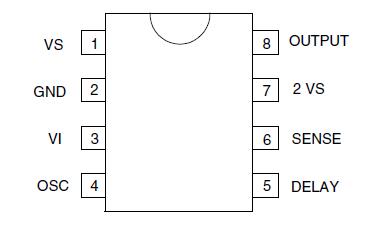

Pinout

Connection Diagram

Specifications

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Parameters	Symbol	Value	Unit
Ambient temperature range	T_amb	-40to+110
Storage temperature range	T_stg	-55to+125
Junction temperature	T_j	150

Description

The U6083B is a PWM IC in bipolar technology for the control of an N-channel power MOSFET used as a high-side switch. The IC is ideal for use in brightness control systems (dimming) of lamps, for example, in dashboard applications.
