Product Details

Description



Features:

 Only a single data line is necessary
Quadruple comparison of the data signal for high transmission safety
Minimum of peripherals
Master/slave operation
Wide supply-voltage range
According to VDE 0839
Load-dump protected

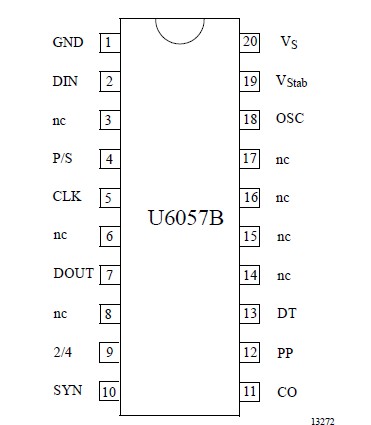

Pinout

Connection Diagram


Specifications

Parameters Symbol Value Unit
Supply voltage (static) VS 25 V
Power dissipation Tamb = 85°C Ptot 920 mW
Junction temperature Tj 150 °C
Storage temperature range Tstg 55 to +125 °C
Ambient temperature range Tamb 40 to +85 °C



Description

Local, low speed multiplex systems U6057B reduce the amount of wires and connectors, save costs and weight and increase the safety in automotive and industrial applications. The U6057B is an ideal receiver for an 8-bit data word with simple protocol of a fixed length. It checks the correct data transmission and provides the data word in an 8-bit shift register for a microcontroller.
