U6049B

Features: · Delay time range: 3.7 s to 20 h· Cooling time starts when thermal switch is closed· RC-oscillator determines switching characteristics· Relay driver with Z-diode· Debounced input for coolant temperature switch· Not debounced input for ignition key (Terminal 15)· Load-dump protection· R...

product image

U6049B Picture
See larger image
SeekIC No. : 004534957 Detail

U6049B: Features: · Delay time range: 3.7 s to 20 h· Cooling time starts when thermal switch is closed· RC-oscillator determines switching characteristics· Relay driver with Z-diode· Debounced input for coo...

U6049B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U6049B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Delay time range: 3.7 s to 20 h
· Cooling time starts when thermal switch is closed
· RC-oscillator determines switching characteristics
· Relay driver with Z-diode
· Debounced input for coolant temperature switch
· Not debounced input for ignition key (Terminal 15)
· Load-dump protection
· RF interference protected
· Protection according to ISO/TR 7637-1 (VDE 0839)




Pinout

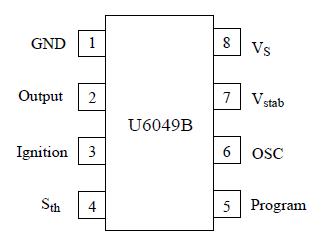

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Operating voltage static, 5 min
VBatt
24
V
Ambient temperature range
Tamb
-40to+125
Storage temperature range
Tstg
-55to+125
Junction temperature
Tj
150



Description

The bipolar integrated circuit, U6049B, is designed as a radiator fan controlled timer. After the ignition is switched off, the thermal switch of the engine can activate the radiator fan via relay for a preset period to support the cooling process.
