Product Details

Description

Features:

· Delay time range: 3.7 s to 20 h
· RC oscillator determines switching characteristics
· Relay driver with Z-diode
· Debounced input for toggle switch
· Two debounced inputs: ON and OFF
· Load-dump protection
· RF interference protected
· Protection according to ISO/TR7637-1 (VDE 0839)
· U6046B: Inputs switched to V_Batt
· U6047B: Inputs switched to ground

Pinout

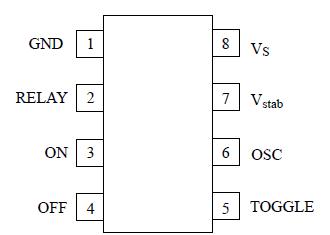

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Operating voltage static, 5 min	V_Batt	24	V
Ambient temperature range	T_amb	-40to+125
Storage temperature range	T_stg	-55to+125
Junction temperature	T_j	150

Description

The window heating timers U6046B are bipolar integrated circuits. Due to time controlled functions, they reduce the current consumptions of high loads i.e., heating resistors.

An ON-relay U6046B can be switched off after a preset delay time. The relay time can be interrupted manually, whereas a retrigger function is not provided.
