Product Details

Description

Features:

· Delay time range: 4 s to 20 h
· Cool-off time starts when thermal switch is closed
· RC oscillator determines switching characteristics
· Relay driver with Z-diode
· Debounced input for coolant temperature switch
· Not debounced input for ignition key (Terminal 15)
· Low standby current
· Load dump protection
· RF interference protected
· Protection according to ISO/TR 7637-1 (VDE 0839)

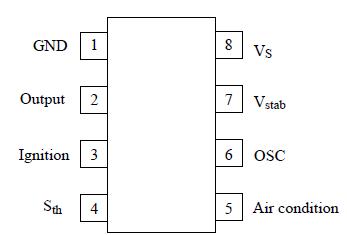

Pinout

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Operating voltage t=1min t=60min	V_Batt	24 18	V
Ambient temperature range	T_amb	-40to+125
Storage temperature range	T_stg	-55to+125
Junction temperature	T_j	150

Description

The bipolar integrated circuit U6044B, U 6044 B, is designed as a radiator fan controlled timer. After the ignition is switched off, the thermal switch of the engine can activate the radiator fan via relay for a preset period, to support the cool-off process. In addition, an air-conditioning contact U6044B can switch on the radiator fan at any time.
