U4488B

Features: · 5-V supply voltage; low power consumption· Gain-controlled 3-stage wideband IF amplifier· Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true quadrature demodulation· Complete alignment-free AM demodulator· Switchable amplitude detector for gain control, ...

product image

U4488B Picture
See larger image
SeekIC No. : 004534914 Detail

U4488B: Features: · 5-V supply voltage; low power consumption· Gain-controlled 3-stage wideband IF amplifier· Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true quadrature de...

U4488B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U4488B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 · 5-V supply voltage; low power consumption
 · Gain-controlled 3-stage wideband IF amplifier
 · Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true quadrature demodulation
 · Complete alignment-free AM demodulator
 · Switchable amplitude detector for gain control, which operates as a peak detector for FM sound and as a mean level detector for AM sound
 · Two symmetrical IF inputs




Pinout

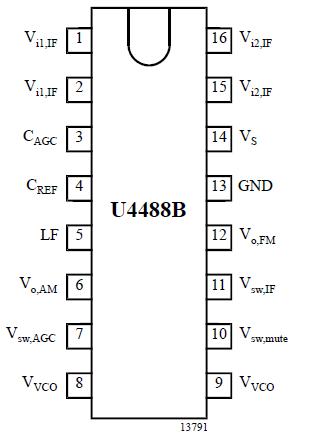

Connection Diagram


Specifications

Reference point Pin 13, unless otherwise specified
Parameters
Symbol
Value
Unit
Supply voltage range Pin14
VS
4.5to9.0
V
Supply current Pin14
IS
55
mA
Power dissipation (VS=9V)
P
500
mW
Output currents Pins6 and 12
Iout
5
mA
External voltages Pins1,2,3,4,6,12,15and16
Pins5,8 and 9
Pins7,10 and 11
Vext
+4.5
V
+3.5
V
VS
V
Junction temperature
Tj
+125
Operating temperature
Tamb
0to+85
Storage temperature
Tstg
25 to +125
Electrostatic handling* all pins
VESD
±300
V
Equivalent to discharging a 200-pF capacitor through a 0- resistor


Description

The U4488B is an integrated bipolar circuit for full multistandard sound IF signal processing in TV/VTR and Multimedia applications. It supplies AM signals as well as FM/NICAM sound IF signals and thus allows the deThe U4488B is an integrated bipolar circuit for full multistandard sound IF signal processing in TV/VTR and Multimedia applications. It supplies AM signals as well as FM/NICAM sound IF signals and thus allows the design of a universal sound IF module for various applications. The U4488B has the same performance like the U4468B, with the additional feature of a second symmetrical IF input.
