U426B

Features: · Programmable constant current 200 mA to 1.2 A· Signal frequency up to 500 kHz·Low-power standby mode· Internal voltage comparator· Wide voltage range 2.4 V to 12 VApplication· Keyless entry systems· Remote control· Wireless data communicationPinoutSpecifications Parameters Sy...

product image

U426B Picture
See larger image
SeekIC No. : 004534884 Detail

U426B: Features: · Programmable constant current 200 mA to 1.2 A· Signal frequency up to 500 kHz·Low-power standby mode· Internal voltage comparator· Wide voltage range 2.4 V to 12 VApplication· Keyless en...

U426B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U426B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Programmable constant current 200 mA to 1.2 A
· Signal frequency up to 500 kHz
·Low-power standby mode
· Internal voltage comparator
· Wide voltage range 2.4 V to 12 V


Application

· Keyless entry systems
· Remote control
· Wireless data communication


Pinout

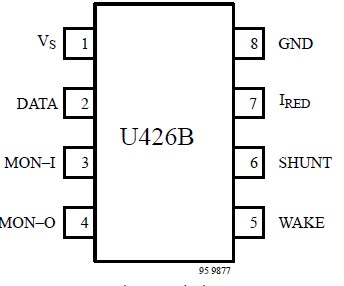

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage
Pin 1
VS
13.4
V
Supply current
t < 10s
IS
is
40
150
mA
mA
Input voltages
Pins 2, 3 and 5
Pin 6
VI
VS
1
V
V
Input currents
Pins 2, 3 and 5
II
1
mA
Output voltage
Pin 7
Pin 4
V7
V4
13.4
VS
V
V
Output current
t < 100 s
Pin 7
Pin 4
I7
I4
1.5
5
A
mA
Power dissipation Tamb = 85°C
SO8 : on PC board
on ceramic
on ceramic with silicon grease
Ptot
Ptot
Ptot
150
250
430
mW
mW
mW
Junction temperature
Tj
125
°C
Ambient temperature range
Tamb
40 to 85
°C
Storage temperature range
Tstg
40 to 150
°C



Description

The U426B is an IR-driver IC for IR data communication. The circuit contains a programmable constant current source (DRV) to drive the IRED. The current is programmed by an external resistor (RS). With the internal comparator (COMP) an external voltage can be monitored. The low-power standby mode, controlled by means of the WAKE input, makes the U426B well suited for battery- powered systems.
