Product Details

Description

Features:

· High dynamic range for AM and FM
· Integrated AGC for FM
· High intercept point 3rd order for FM
· FM amplifier adjustable to various cable impedance
· High intercept point 2nd order for AM
· Low noise output voltage
· Low power consumption

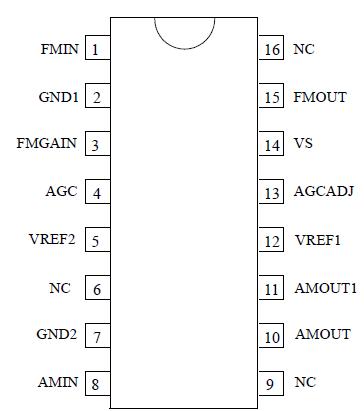

Pinout

Connection Diagram

Specifications

Reference point is ground (Pins 2 and 7)

Parameters	Symbol	Value	Unit
Supply voltage	V_S	8.8	V
Power dissipation, P_totat T_amb = 85°C	P_tot	460	mW
Junction temperature	T_j	150
Ambient temperature	T_amb	-40to+85
Storage temperature	T_stg	-50to+150
Electrostatic handling (HBM)	±V_ESD	2000	V

Description

The U4254BM is an integrated low-noise AM/FM antenna impedance matching circuit in BICMOS technology. The device is designed in particular for car application and is suitable for windscreen and roof antennas.
