Product Details

Description



Features:

· Low power consumption
· Very high sensitivity
· High selectivity by quartz resonator
· Stop-function available
· Only a few external components necessary
· Digitized serial output signal

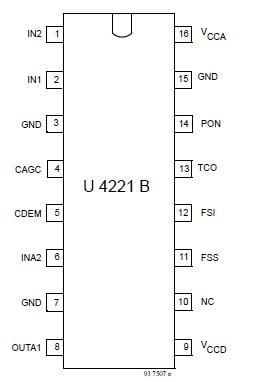

Pinout

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage
VCC
5.5
V
Junction temperature
Tj
125
Ambient temperature range
Tamb
20 to +70
Storage temperature range
Rstg
30 to +85
Electrostatic handling (MIL Standard 883°C)
±VESD
2000
V



Description

The U4221B is a bipolar integrated straight through receiver circuit in the frequency range of 60 to 80 kHz. The device is designed for radio controlled clock application.
