U4091BM-N

Features: • Speech Circuit with Anti-clipping• Tone-ringer Interface with DC/DC Converter• Speaker Amplifier with Anti-distortion• Power-supply Management (Regulated, Unregulated) and a Special Supply for ElectretMicrophone• Voice Switch• Interface for Answering...

product image

U4091BM-N Picture
See larger image
SeekIC No. : 004534863 Detail

U4091BM-N: Features: • Speech Circuit with Anti-clipping• Tone-ringer Interface with DC/DC Converter• Speaker Amplifier with Anti-distortion• Power-supply Management (Regulated, Unregul...

U4091BM-N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U4091BM-N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Speech Circuit with Anti-clipping
• Tone-ringer Interface with DC/DC Converter
• Speaker Amplifier with Anti-distortion
• Power-supply Management (Regulated, Unregulated) and a Special Supply for ElectretMicrophone
• Voice Switch
• Interface for Answering Machine and Cordless Phone


Application

• Feature Phone
• Answering Machine
• Fax Machine
• Speaker Phone
• Cordless Phone

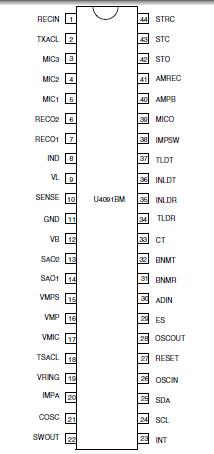

Pinout

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Line current
IL
140
mA
DC line voltage
VL
12
V
Maximum input current
IRING
15
mA
Junction temperature
Tj
125
°C
Ambient temperature
Tamb
-25 to +75
°C
Storage temperature
Tstg
-55 to +150
°C
Total power dissipation, Tamb = 60°C
Ptot
0.9
W



Description

The programmable telephone audio processor U4091BM-N is a linear integrated circuit for use in feature phones, answering machines and fax machines. U4091BM-N contains the speech circuit, tone-ringer interface with DC/DC converter, sidetone equivalent and ear-protection rectifiers. The circuit is line-powered and contains all components necessary for signal amplification and adaptation to the line. The U4091BM-N can also be supplied via an external power supply. An integrated voice switch with loudspeaker amplifier enables hands-free or loudhearing operation. With an anti-feedback function, acoustic feedback during loudhearing can be reduced significantly. The generated supply voltage is suitable for a wide range of peripheral circuits.
