U4037BN

Features: DC characteristic adjustableReceive gain adjustableSymmetrical input of microphone amplifierAnti-clipping in transmit directionAutomatic line-loss compensationSymmetrical output of earpiece amplifierBuilt-in ear protectionDTMF and MUTE inputAdjustable sidetone suppression independent of ...

product image

U4037BN Picture
See larger image
SeekIC No. : 004534842 Detail

U4037BN: Features: DC characteristic adjustableReceive gain adjustableSymmetrical input of microphone amplifierAnti-clipping in transmit directionAutomatic line-loss compensationSymmetrical output of earpiec...

U4037BN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U4037BN
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

DC characteristic adjustable
Receive gain adjustable
Symmetrical input of microphone amplifier
Anti-clipping in transmit direction
Automatic line-loss compensation
Symmetrical output of earpiece amplifier
Built-in ear protection
DTMF and MUTE input
Adjustable sidetone suppression independent of sending and receiving amplification
Power down
Tone-ringer interface
2-bit D/A for volume control
Supply voltages for all functional blocks of a subscriber set
Operation possible from 8-mA line currents


Pinout

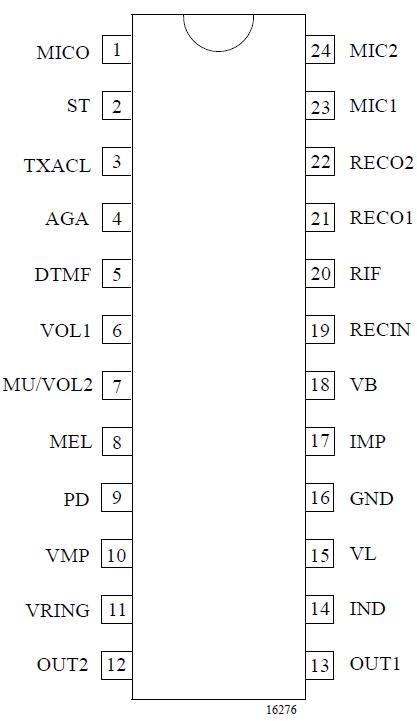

Connection Diagram


Specifications

Parameters Symbol Value Unit
Line current IL 140 mA
DC line voltage VL 12 V
Maximum input current IRING 15 mA
Junction temperature Tj +125 °C
Ambient temperature Tamb 25 to +75 °C
Storage temperature Tstg 50 to +125 °C
Total power dissipation Tamb = 60°C Ptot 520 W



Description

The C-controlled telephone circuit U4037B is a linear integrated circuit for use in telephone sets. It contains the speech circuit, tone-ringer interface, sidetone equivalent and ear-protection rectifiers. The U4037B is line powered and contains all components necessary for amplification of signals and adaptation to the line.
