U3770M

Features:

Programmable 0.8/1.6-MHz quadrature-modulated carrier generation
More than 26 dB LO and sideband suppression
18.432 MHz CMOS level clock generation
Supply-voltage range 2.7 V to 3.3 V
Low power consumption, typically 12 mW
SO16 package or die form

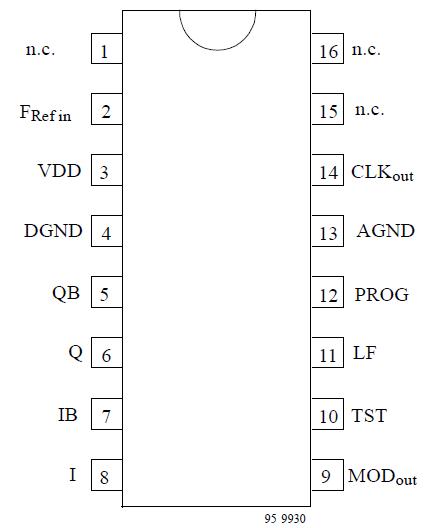

Pinout




Specifications

Stresses at or above those listed may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in this data sheet is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Parameters	Symbol	Value	Unit
Supply voltage	VDD	6	V
Modulator input voltages	I IB Q QB	0.5 to VDD	V
Reference frequency input	FRef in	0.5 to VDD	V
Ambient temperature	Tamb	40 to +85	°C
Storage temperature	Tstg	65 to +150	°C
Junction temperature	Tj	Tj < Tamb +10	°C

Description

The U3770M is a quadrature modulator realized using TEMIC Semiconductors' advanced 0.8 micron CMOS process. The U3770M is especially designed for CT2 applications in conjunction with TEMIC Semiconductors' RF/IF signal processor U2760B and a CT2 baseband controller (i.e., AMD PhoX^TM controller Am79C4xx). Together with TEMIC Semiconductors' PLL IC U2783B and the GaAs front end U7001BG, a complete CT2 chip set is available.

Electrostatic sensitive device. Observe precautions for handling.
