U3761MB-S

Features: Speech Circuit Adjustable DC characteristic Symmetrical input of microphone amplifier Receiving amplifier for dynamic or piezo-electric earpieces Automatic line-loss compensationDialer DTMF / pulse switchable Pulse dialing 66/33 or 60/40 or DTMF dialing selectable by pin Selectable flash...

product image

U3761MB-S Picture
SeekIC No. : 004534821 Detail

U3761MB-S: Features: Speech Circuit Adjustable DC characteristic Symmetrical input of microphone amplifier Receiving amplifier for dynamic or piezo-electric earpieces Automatic line-loss compensationDialer DTM...

floor Price/Ceiling Price

Part Number:
U3761MB-S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/31

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Speech Circuit
  Adjustable DC characteristic
  Symmetrical input of microphone amplifier
  Receiving amplifier for dynamic or piezo-electric earpieces
  Automatic line-loss compensation
Dialer
  DTMF / pulse switchable
  Pulse dialing 66/33 or 60/40 or DTMF dialing selectable by pin
  Selectable flashing duration by key pad
  Pause function
  Optical indication of temporary DTMF mode
  Keytone for pulse dialing
  Last number redial up to 32 digits
  Three by 17 digits direct (one-touch) memory
  Ten by 17 digits indirect (two-touch) memory
  Notice function up to 32 digits
  Standard low-cost crystal 3.58 MHz or ceramic resonator
  Handset Mute (Privacy) with optical indication
  Additional toggle flipflop
  Internal loop interrupt detection
Tone Ringer
  2-tone ringer
  Adjustable volume
  RC oscillator
  Adjustable threshold
Benefits
  Low number of external components
  High quality through one IC solution



Pinout

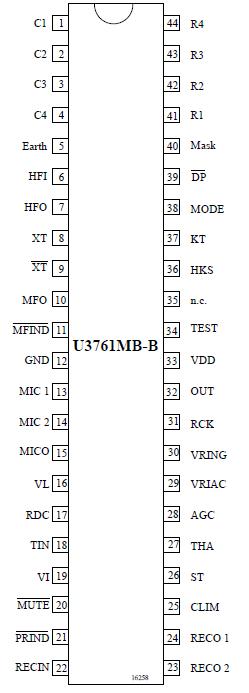

  Connection Diagram


Specifications

Parameters Symbol Value Unit
Line current IL 140 mA
DC line voltage VL 14 V
DC voltage at Pins 1 to 11 and 33 to 44 VDC 5.5 V
Junction temperature Tj 125 °C
Ambient temperature Tamb 25 to +75 °C
Storage temperature Tstg 55 to +150 °C
Total power dissipation, Tamb = 60°C   SSO44 Ptot 0.9 W
Junction ambient                                     SSO44 RthJA 70 k/W



Description

TEMIC Semiconductors'U3761MB-S low-voltage telephone circuit U3761MB performs all the speech and line interface functions required in an electronic telephone set, the tone ringer, the pulse and DTMF dialing with redial, notice function, and 13 memories. Operation below 15 mA is possible with reduced performance.

Electrostatic sensitive U3761MB-S. Observe precautions for handling.
