Features:

· Completely alignment-free
· PLL demodulator for FM intercarrier sound IF signals (mono)
· Two audio switches
· Very few external components
· Volume control by DC voltage
· Supply voltage: 5 V; low power consumption

Pinout

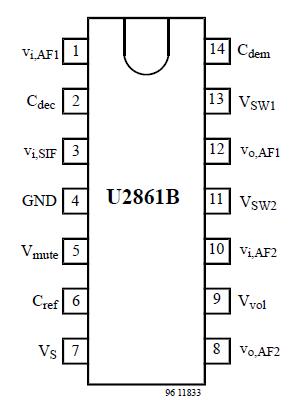

Connection Diagram

Specifications

Characteristic	Symbol	Value	Unit
Supply voltage Pin 7 DIP14 package SO14 package	V_S	9.0	V
Supply voltage Pin 7 DIP14 package SO14 package	V_S	6.0	V
Supply current Pin 7	I_S	25	mA
Power dissipation V_S = 9 V(DIP14 only) V_S = 6 V	P	225	mW
Power dissipation V_S = 9 V(DIP14 only) V_S = 6 V	P	150	mW
Output currents Pin8,12	I_out	±1.5	mA
External voltages Pin1,2,3,5,6,8,9,10,12,13,14, Pin11	V_ext	+4.5 +12.0	V
External voltages Pin1,2,3,5,6,8,9,10,12,13,14, Pin11	V_ext		V
Ambient temperature	T_amb	10 to +85	°C
Junction Temperature	T_j	+125	°C
Storage temperature	T_stg	25 to +125	°C
Electrostatic handling *) all pins	V_ESD	±200	V

*) equivalent to discharge a 200-pF capacitor through a 0- resistor

Description

The U2861B is an alignment-free FM sound IF demodulator for all TV standards from 4.5 MHz up to 6.5 MHz (standard M, N, B/G, I, D/K). The circuit includes two switchable audio inputs and volume control. With a supply voltage of 5 V, the U2861B is suitable for TV, VCR and Multimedia applications.
