U2841B

Features: · IF input provided for operating with ceramic filters· Minimum total harmonic distortion· Low power consumption· Operates alternatively with 5 V or 12 V supply voltage· Demodulator provided for operating with ceramic resonator or coil· SCART AF input / AF output· Wide volume control ran...

product image

U2841B Picture
See larger image
SeekIC No. : 004534759 Detail

U2841B: Features: · IF input provided for operating with ceramic filters· Minimum total harmonic distortion· Low power consumption· Operates alternatively with 5 V or 12 V supply voltage· Demodulator provid...

U2841B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2841B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· IF input provided for operating with ceramic filters
· Minimum total harmonic distortion
· Low power consumption
· Operates alternatively with 5 V or 12 V supply voltage
· Demodulator provided for operating with ceramic resonator or coil
· SCART AF input / AF output
· Wide volume control range
· ESD protected




Pinout

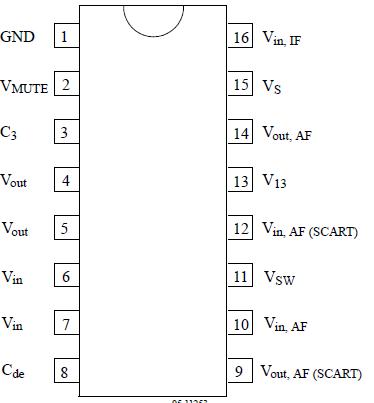

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage Pin 15
VS
12.5
V
Supply current Pin 15
IS
33
mA
External voltage Pins 2, 3, 4, 5, 7, 8, 9, 10, 12,
13, 14 and 16
Vext
5
V
External voltage Pin 11
Vext
VS
V
Junction temperature
Tj
125
°C
Ambient temperature
Tamb
25 to +85
°C
Storage temperature
Tstg
25 to +125
°C



Description

The integrated circuit, U2841B, is designed as a single FM-IF-amplifier and demodulator for TV soundprocessing with SCART switches and AF control in bipolar technology.
