Product Details

Description



Features:

· Supply voltage range: 2.7 to 5.5 V
· Exellent isolation characteristics
· Low current consumption: 3.2 mA without RIP3
· IIP3 programmable
· Input frequency operating range up to 2 GHz
· RF characteristic nearly independent of supply voltage

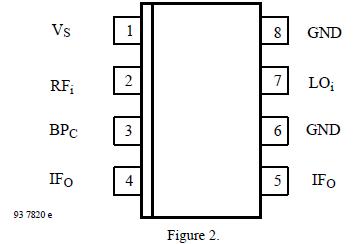

Pinout

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage Pin 1
VS
6
V
Input voltage Pins 2, 3, 4, 5 and 7
VI
0 to VS
V
Junction temperature
Tj
125
°C
Storage temperature range
Tstg
40 to 125
°C



Description

The U2796B-FP is a 2-GHz down conversion mixer for telecommunication systems, e.g. cellular radio, CT1, CT2, DECT, PCN, using TEMIC Semiconductors advanced bipolar technology. The U2796B is well suitedfor the receiver portion of the RF circuit. Single balanced structure has been chosen for the best noise performance and low current consumption. The IIP3 is programmable.
