U2793B

Features: •Supply Voltage: 5 V•Low Power Consumption: 15 mA/5 V•Output Level and Spurious Products Adjustable (Optional)•Excellent Sideband Suppression by Means of Duty Cycle Regeneration of the LO Input Signal•Phase-control Loop for Precise 90° Phase Shifting•P...

product image

U2793B Picture
See larger image
SeekIC No. : 004534754 Detail

U2793B: Features: •Supply Voltage: 5 V•Low Power Consumption: 15 mA/5 V•Output Level and Spurious Products Adjustable (Optional)•Excellent Sideband Suppression by Means of Duty Cycle...

U2793B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2793B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Supply Voltage: 5 V
•Low Power Consumption: 15 mA/5 V
•Output Level and Spurious Products Adjustable (Optional)
•Excellent Sideband Suppression by Means of Duty Cycle Regeneration of the LO Input Signal
•Phase-control Loop for Precise 90° Phase Shifting
•Power-down Mode
•Low LO Input Level: -15 dBm
•50- Single-ended LO and RF Port
•LO Frequency Range of 30 MHz to 300 MHz


Pinout

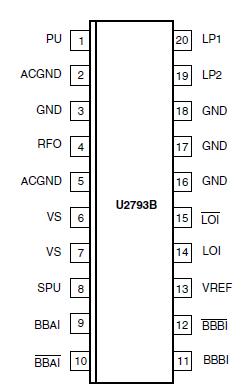

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage
VS
6
V
Input voltage
Vi
0 to VS
V
Junction temperature
Tj
125
°C
Storage temperature range
Tstg
40 to 125
°C






Description

The IC U2793B is a 300-MHz quadrature modulator that uses Atmel's advanced UHF process. It features low current consumption, single-ended RF ports and adjustmentfree application, which makes the U2793B suitable for all digital radio systems, e.g., GSM, PCN, JDC and WLAN. As an option, output level and spurious products are adjustable at pins 19 and 20. In conjunction with Atmel's U2795B mixer, an up-converter up to 2 GHz can be realized.
