U2786B

Features: 1-GHz PLL, frequency doubler, TX data filter(13.824-MHz/ 27.648-MHz reference clock) Supply-voltage range: 2.7 V to 4.7 V Low current consumption Few external components No mechanical tuning necessary Switchable charge-pump current for enhancedswitching time 1 operational amplifier for ...

product image

U2786B Picture
See larger image
SeekIC No. : 004534750 Detail

U2786B: Features: 1-GHz PLL, frequency doubler, TX data filter(13.824-MHz/ 27.648-MHz reference clock) Supply-voltage range: 2.7 V to 4.7 V Low current consumption Few external components No mechanical tun...

U2786B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2786B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1-GHz PLL, frequency doubler, TX data filter(13.824-MHz/ 27.648-MHz reference clock)
Supply-voltage range: 2.7 V to 4.7 V
Low current consumption
Few external components
No mechanical tuning necessary
Switchable charge-pump current for enhancedswitching time
1 operational amplifier for active loop filter
Advanced closed-loop modulation (with13.824-MHz/ 27.648-MHz reference clock) and openloop modulation supported


Pinout

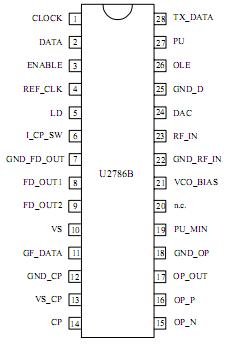

Connection Diagram


Specifications

Parameter

SYMBOL

MIN.

MAX.

UNIT

Supply voltage Pins 10 and 13

VS



5.0

V

Logic input voltage Pins 1, 2, 3, 6, 26, 27 and 28

VIN

-0.3

5.0

V

Junction temperature

Tjmax

150

°C

Storage temperature

Tstor

-40

150




Description

The U2786B is an RF IC for low-power DECT transmitapplications. The IC includes a complete PLL with1-GHz prescaler, on-chip frequency doubler, biasingforoff-chip VCO, an integrated TX filter U2786B and a modulation-compensation circuit for advanced closed-loopmodulation concept.

Electrostatic sensitive device.

Observe precautions for handling.
