U2785B

Features: 1-GHz PLL, TX data filter (10.368-MHz /20.736-MHz reference clock), frequency doubler Low current consumption Few external components Supply-voltage range 2.7 V to 4.7 V Switchable charge-pump current for enhancedswitching time Two operational amplifiers for active loop filter Advanced c...

product image

U2785B Picture
See larger image
SeekIC No. : 004534749 Detail

U2785B: Features: 1-GHz PLL, TX data filter (10.368-MHz /20.736-MHz reference clock), frequency doubler Low current consumption Few external components Supply-voltage range 2.7 V to 4.7 V Switchable charge-...

U2785B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2785B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1-GHz  PLL, TX data filter (10.368-MHz /20.736-MHz reference clock), frequency doubler
Low current consumption
Few external components
Supply-voltage range 2.7 V to 4.7 V
Switchable charge-pump current for enhancedswitching time
Two operational amplifiers for active loop filter
Advanced closed-loop modulation (with10.368-MHz / 20.736-MHz reference clock) andopen-loop modulation supported


Pinout

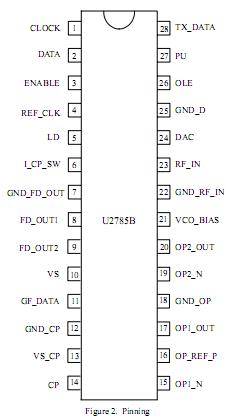

Connection Diagram


Specifications

Parameter

Symbol

Value

Unit

Supply voltage Pins 10, 13

VS

5.0

V

Logic input voltage Pins 1, 2, 3, 6, 26, 27 and 28

VIN

0.3 to VS

v

Junction temperature

Tjmax

150

°C

Storage temperature

Tstg

40 to+ 150

°C




Description

The U2785B is an RF IC for low-power DECT transmitapplications.  The SSO28-packaged IC is a complete PLLincluding a 1-GHz prescaler, on-chip frequency doubler,biasing for off-chip VCO, an integrated TX-filter and amodulation compensation circuit U2785B for advanced closed-loop modulation concept. No mechanical tuning isnecessary in production.

Electrostatic sensitive device.

Observe precautions for handling.
