Features:

Microprocessor-controlled via an I2C bus
Four addresses selectable
Four reference divide factors selectable: 1024, 1120, 1152, 1536 effectively
Programmable 15-bit counter 1:2048 to 1:32767 effectively
Tristate phase detector with programmable charge pump
Superior phase-noise performance
De-activation of tuning output programmable
Six switching outputs (open collector)
Reference frequency doubler (open collector output)
Lock-status indication (open collector)



Pinout

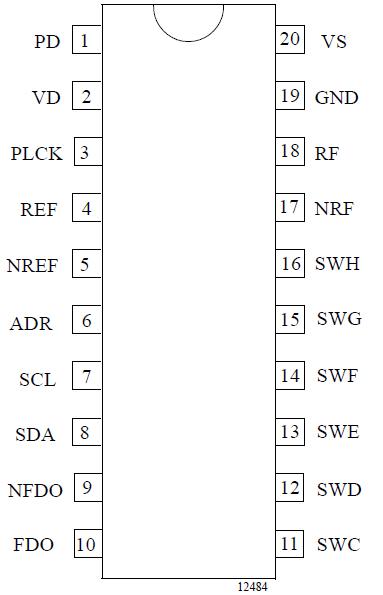

  Connection Diagram


Specifications

Parameters Symbol Min. Typ. Max. Unit
Supply voltage VS 0.3 +5.5 V
Junction temperature Tj 125 °C
Storage temperature Tstg 40 +125 °C
RF input voltage (AC) Pins 18 and 17 RF, NRF 1 Vpp
Reference input voltage (AC) Pins 4 and 5 REF, NREF 1 Vpp
I2C-bus input / output voltage Pins 7 and 8 SCL, SDA 0.3 VS V
SDA output current Pin 8 SDA 5 mA
Address select voltage Pin 6 ADR 0.3 VS V
Switch output voltage open collector SWa 0.3 5.5 V
Switch output current open collector SWa 4 mA
PLCK output voltage open collector Pin 3 PLCK 0.3 5.5 V
PLCK output current open collector Pin 3 PLCK 0.5 mA
Frequency doubler output open collector Pins 9 and 10 FDO, NFDO VS 1 5.5 V



Description

The U2733B-C is a monolithic integrated fractional-N frequency synthesizer circuit fabricated in TEMIC's advanced UHF5S technology. Designed for applications in DAB receivers, U2733B-C controls a VCO to synthesize frequencies in the range of 70 MHz to 500 MHz in a 16 kHz raster; four different reference divide factors can be selected. The lock status of the phase detector is indicated at a special output pin, six switching outputs can be addressed. An internal frequency doubler provides an output signal having twice the frequency of the reference oscillator. All functions of U2733B-C are controlled by I2C bus.

Electrostatic sensitive U2733B-C. Observe precautions for handling.
