Features: • 8.5 V Supply Voltage• Voltage Regulator for Stable Operating Conditions• Microprocessor-controlled Via a Simple Two-wire Bus• Two Addresses Selectable• Gain-controlled RF Amplifier with Two Inputs, Selectable Via a Simple Two-wire Bus Control• Balanc...
U2731B: Features: • 8.5 V Supply Voltage• Voltage Regulator for Stable Operating Conditions• Microprocessor-controlled Via a Simple Two-wire Bus• Two Addresses Selectable• Gain...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

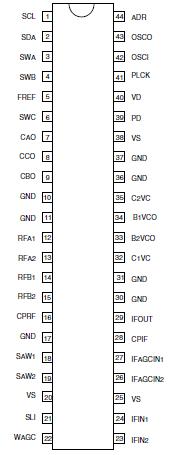

Parameters |
Symbol |
Min. |
Max. |
Unit |
Supply voltage |
VS |
-0.3 |
+9.5 |
V |
Junction temperature |
Tj |
-40 |
150 |
°C |
Storage temperature |
Tstg |
+150 |
°C | |
Differential input RF amplifier, pins 12 and 13 |
VRFA1,2 |
500 |
mVrms | |
Pins 14 and 15 |
VRFB1,2 |
500 |
mVrms | |
Externally applied voltage at RF charge pump output, pin 16 |
VCPRF |
0.5 |
6.75 |
V |
Pin 28 |
VCPIF |
0.5 |
6.25 |
V |
WAGC input voltage, pin 22 |
VWAGC |
-0.3 |
5.5 |
V |
SLI input voltage, pin 21 |
VWAGC |
-0.3 |
5.5 |
V |
Differential base input VCO, pins 33 and 34 |
VBiVC |
500 |
mVrms | |
Differential input IF amplifier, pins 23 and 24 |
VIFIN |
500 |
mVrms | |
Differential input IF AGC block, pins 26 and 27 |
VIFAGCIN |
500 |
mVrms | |
Reference input voltage (AC), pin 42 |
VOSCI |
1 |
Vpp | |
Two-wire bus input/output voltage, pins 1 and 2 |
SCL, SDA |
-0.3 |
5.5 |
V |
SDA output current, pin 2 |
SDA |
5 |
mA | |
Address select voltage, pin 44 |
ADR |
-0.3 |
5.5 |
V |
Switch output voltage; pins 3, 4 and 6 |
SW |
-0.3 |
9.5 |
V |
Switch output current |
SW |
4 |
mA | |
PLCK output voltage, pin 41 |
PLCK |
-0.3 |
5.5 |
V |
PLCK output current, pin 41 |
PLCK |
0.5 |
mA |
The U2731B is a monolithically integrated Digital Audio Broadcasting one-chip front end circuit manufactured using Atmel's advanced UHF5S technology. U2731B's functionality covers a gain-controlled RF amplifier with two selectable RF inputs, a gain-controlled RF mixer, a VCO which provides the LO signal for the RF mixers, either directly or after passing a frequency divider, a SAW filter driver, an AGC block for the RF section, a gain-controlled IF amplifier, an IF mixer which can also be bypassed, an AGC block for the IF section and a fractional-N frequency synthesizer. The frequency synthesizer controls the VCO to synthesize frequencies in the range of 70 MHz to 500 MHz in a 16-kHz raster; within certain limits the reference divider factor is fully programmable. The lock status of the phase detector is indicated at a special output pin; three switching outputs can be addressed. A reference signal which is generated by an on-chip reference oscillator is available at an output pin. This reference signal of U2731B is also used to generate the LO signal for the IF mixer, either by doubling the frequency or by using the reference frequency itself. Three D/A converters at a resolution of 8 bits provide a digitally controllable output voltage. The thresholds inside the AGC blocks can be digitally controlled by means of on-chip 4-bit D/A converters. All functions of U2731B are controlled via a simple two-wire bus.
