U2730B-N

Features: • Supply Voltage: 8.5 V• RF Frequency Range: 1400 MHz to 1550 MHz• IF Frequency Range: 150 MHz to 250 MHz• Enhanced IM3 Rejection• Overall Gain Control Range: 30 dB Typically• DSB Noise Figure: 10 dB• Gain-controlled Amplifier and L-band Mixer...

product image

U2730B-N Picture
See larger image
SeekIC No. : 004534727 Detail

U2730B-N: Features: • Supply Voltage: 8.5 V• RF Frequency Range: 1400 MHz to 1550 MHz• IF Frequency Range: 150 MHz to 250 MHz• Enhanced IM3 Rejection• Overall Gain Control Range:...

U2730B-N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2730B-N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply Voltage: 8.5 V
• RF Frequency Range: 1400 MHz to 1550 MHz
• IF Frequency Range: 150 MHz to 250 MHz
• Enhanced IM3 Rejection
• Overall Gain Control Range: 30 dB Typically
• DSB Noise Figure: 10 dB
• Gain-controlled Amplifier and L-band Mixer
• Power-down Function for the Analog Part
• On-chip Gain-control Circuitry
• On-chip VCO, Typical Frequency 1261.568 MHz
• Internal VCO Can Be Overdriven by an External LO
• On-chip Frequency Synthesizer
       Fixed LO Divider Factor: 2464
       Nine Selectable Reference Divider Factors : 32, 33, 35, 36, 48, 49, 63, 64, 65
       A Reference Oscillator (Can Be Overdriven by an External Reference Signal)
        Tristate Phase Detector with Programmable Charge Pump
       Programmable Deactivation of Tuning Output
       Lock-status Indication
       Test Interface

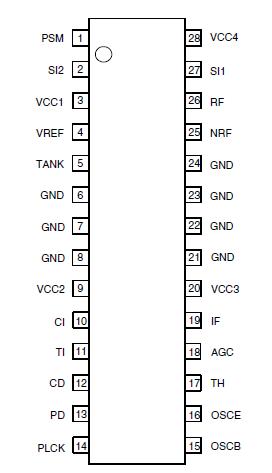

Pinout

Connection Diagram


Specifications

Parameters
Pins
Symbol
Value
Unit
Supply voltage
3, 9, 20 and 28
VCCS
-0.3 to +9.5
V
RF input voltage
25 and 26
VRF
750
mVpp
Voltage at pin AGC
18
VAGC
0.5 to 6
V
Voltage at pin TH
17
VVTH
-0.3 to +4.0
V
Input voltage at pin TANK
(internal oscillator overdriven)
5
VTANK
1
Vpp
Current at IF output
19
IIF
4.0
mA
Reference input voltage (diff.)
15
OSCB
1
Vpp
Control input voltage
1, 2, 10 and 27
CI, SI1, SI2, PD
-0.3 to +9.5
V
PLCK output voltage
14
IPLCK
0.5
mA
PLCK output current
14
VPLCK
-0.3 to +5.5
V
Junction temperature
Tj
125
Storage temperature
Tstg
-40 to +125



Description

The U2730B-N is a monolithically integrated L-band down-converter circuit fabricated with Atmel's advanced UHF5S technology. U2730B-N covers all functions of an L-band down-converter in a DAB receiver. The U2730B-N includes a gain-controlled amplifier, a gain-controlled mixer, an output buffer, a gain control block, a power save function for the analog part, an L-band oscillator and a complete frequency syntheziser unit. The frequency syntheziser block consists of a reference oscillator/buffer, a reference divider, an RF divider, a tri-state phase detector, a loop filter amplifier, a lock detector, a programmable charge pump, a test interface and a control interface.
