U2641B

Features:

Relay activation can be controlled by a limit switch of the wiper motor or by a fixed activation period for systems without limit switch
Debounced input stages
Enable/disable of pre-wash delay by program pin
Polarity of WIWA: GND
Polarity of INT: V_Batt
Relay output is protected with a clamping diode
Relay activation: 0.48 s
Interval pause: 5.8 s
After wiping: 5.2 s
Pre-wash delay: 0.52 s
Wipe/wash mode with priority
Protected in accordance to ISO/TR 76371
EMC with intergrated filters

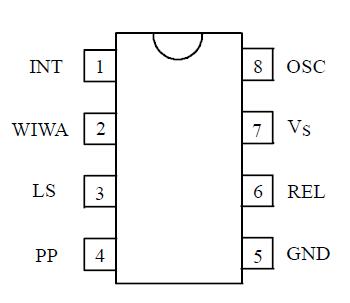

Pinout




Specifications

Parameter	Test Conditions	Symbol	Value	Unit
Supply voltage (static)	5 min	VBatt	24	V
Supply current pulse	2 ms	IS	1.5	A
Supply current pulse	300 ms	IS	150	mA
Relay output current (static)		IREL	300	mA
Relay output current pulse	300 ms	IREL	1.5	A
Ambient temperature range		Tamb	40 to +95	°C
Storage temperature range		Tstg	55 to +125	°C
Power dissipation	DIP8	Ptot	0.45	W
Power dissipation	SO8	Ptot	0.34	W

Description

With the U264xB, TEMIC Semiconductors developed a family of intermittent- and wipe/wash control circuits for windshield or backlite wiper systems with identical basic functions. The circuit design provides the possibility to generate "x" versions using different metallization masks. Thus, U264xB is easy to verify a broad range of time sequences which can be set independently of each other.
