U2480B

Features: ` 10 mV comparator thresholds` Temperature compensated` Voltage characteristic of the lamps is taken into account` Input voltage range up to 23 V independent of supply` Typical input currents 25 A, so that protective resistors can be connected in series` Internal protection measures for...

product image

U2480B Picture
See larger image
SeekIC No. : 004534702 Detail

U2480B: Features: ` 10 mV comparator thresholds` Temperature compensated` Voltage characteristic of the lamps is taken into account` Input voltage range up to 23 V independent of supply` Typical input curre...

U2480B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2480B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 10 mV comparator thresholds
` Temperature compensated
` Voltage characteristic of the lamps is taken into account
` Input voltage range up to 23 V independent of supply
` Typical input currents 25 A, so that protective resistors can be connected in series
` Internal protection measures for pulses according to ISO TR 7637/1
` ESD according to MIL-SID-883 C test method 3015.7
      Human body model:      4 kV
      Machine model:           200 V
      EMI protection (TEM cell up to 100 V/m)


Pinout

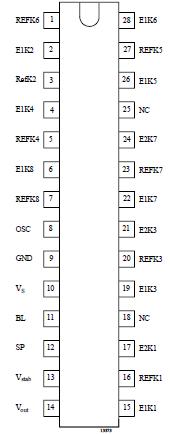

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage
VS, VBatt
16.5
V
Pulse current (2 ms)
IS
1.1
A
Short circuit current (reversed battery)
ISC
170
mA
Output current
Iout
12
mA
Ambient temperature range
Tamb
40 to +100
°C



Description

The IC U2480B is designed for individual monitoring of 11 lamps in automobiles. Three double comparators and five single comparators, which can be optionally interconnected, permit realization of many monitoring variants. An integrated latch is available to memorize the outage of indicator or brake lamps.
