U2320B

Features: · Frequency range from 48 to 860 MHz· Band A: balanced high impedance mixer input and amplitude controlled oscillator· Band B: balanced low impedance mixer input and symmetrical oscillator· SAW filter driver with low impedance output· Voltage regulator for stable operating characteristic...

product image

U2320B Picture
See larger image
SeekIC No. : 004534694 Detail

U2320B: Features: · Frequency range from 48 to 860 MHz· Band A: balanced high impedance mixer input and amplitude controlled oscillator· Band B: balanced low impedance mixer input and symmetrical oscillator...

U2320B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2320B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Frequency range from 48 to 860 MHz
· Band A: balanced high impedance mixer input and amplitude controlled oscillator
· Band B: balanced low impedance mixer input and symmetrical oscillator
· SAW filter driver with low impedance output
· Voltage regulator for stable operating characteristics
· ESD protection on all pins except oscillator pins and RF-inputs




Pinout

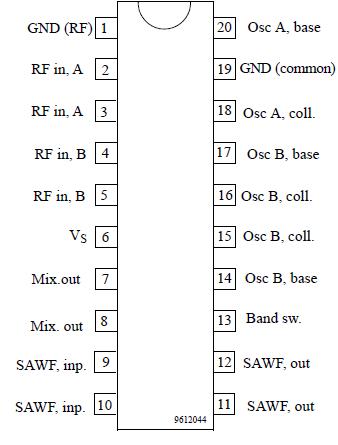

Connection Diagram


Specifications

Parameters
Test Conditions / Pins
Symbol
Min.
Typ.
Max.
Unit
Supply voltage
Pin 15
VS
13.5
V
RF inputs
Pin 16-19
5.0
V
IF outputs
Pin 13-14
13.5
V
Dual-state switch voltage
Pin 8
ViDSW
13.5
V
Junction temperature
Tj
150
°C
Storage temperature
Tstg
40
150
°C







Description

This U2320B tuner IC requires a power supply of 12 V and performs the function of two separate oscillators and mixers, SAW-filter driver and dual state band switch.
