U2270B

Features: ` Carrier frequency fosc 100 KHz 150 KHz` Typical data rate up to 5 Kbaud at 125 KHz` Suitable for Manchester and Bi-phase modulation` Power supply from the car battery or from 5-V regulated voltage` Optimized for car immobilizer applications` Tuning capability` Microcontroller-compatib...

product image

U2270B Picture
SeekIC No. : 004534691 Detail

U2270B: Features: ` Carrier frequency fosc 100 KHz 150 KHz` Typical data rate up to 5 Kbaud at 125 KHz` Suitable for Manchester and Bi-phase modulation` Power supply from the car battery or from 5-V regula...

floor Price/Ceiling Price

Part Number:
U2270B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/11

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Carrier frequency fosc 100 KHz 150 KHz
` Typical data rate up to 5 Kbaud at 125 KHz
` Suitable for Manchester and Bi-phase modulation
` Power supply from the car battery or from 5-V regulated voltage
` Optimized for car immobilizer applications
` Tuning capability
` Microcontroller-compatible interface
` Low power consumption in standby mode
` Power supply output for microcontroller




Application

· Car immobilizers
· Animal identification
· Access control
· Process control
· Further industrial applications




Pinout

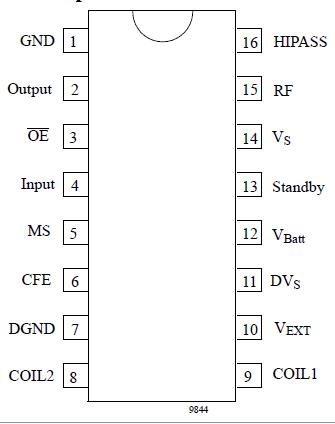

  Connection Diagram


Specifications

Parameters/Conditions Pin
Symbol
Min. Typ.
Max.
Unit
Operating voltage Pin 12
VBatt
VS

16
V
Operating voltage Pins 8, 9, 10, 11 and 14
VS, VEXT,
DVS, Coil 1,
Coil 2
0.3

8
V
Range of input and output voltages
Pins 3, 4, 5, 6, 15 and 16
Pins 2 and 13
0.3

VS+0.3
V
0.3

VBatt
Output current Pin 10
IEXT

10
mA
Output current Pin 2
IOUT

10
Driver output current Pins 8 and 9
ICoil
200
mA

380
mW
Storage temperature range
Tstg

40 to +125
°C
Junction temperature
Tj
-55

+125
°C
Ambient temperature range
Tamb
-40

10 to +100
°C



Description

IC for IDIC® *) read-write base stations

The U2270B is a bipolar integrated circuit for read-write base stations in contactless identification and immobilizer systems.

The IC incorporates the energy transfer circuit to supply the transponder. It consists of an on-chip power supply, an oscillator, and a coil driver optimized for automotive IC for IDIC[ *) read-write base stations
The U2270B is a bipolar integrated circuit for read-write base stations in contactless identification and immobilize  systems.

The U2270B IC incorporates the energy transfer circuit to supply the transponder. It consists of an on-chip power supply, an oscillator, and a coil driver optimized for automotivespecific distances. It also includes all signal-processing circuits which are necessary to form the small input signal into a microcontroller-compatible signal.

The U2270B is well suitable to perform read operations with e5530-GT and TK5530-PP transponders and also performs read-write operations with TK5550-PP and TK5560-PP transponders.
