T L P 3 1 1 3

Features: 4 pin SOP (2.54SOP4) : 2.1 mm high, 2.54 mm pitch1-Form-APeak Off-State Voltage : 40 V (MIN.)Trigger LED Current : 4 mA (MAX.)On-State Current : 80 mA (MAX.)On-State Resistance : 35 (MAX.), 25 (TYP.)Output Capacitance : 1.4 pF (MAX.), 0.6 pF (TYP.)Isolation Voltage : 1500 Vrms (MIN.)Pino...

product image

T L P 3 1 1 3 Picture
See larger image
SeekIC No. : 004510738 Detail

T L P 3 1 1 3: Features: 4 pin SOP (2.54SOP4) : 2.1 mm high, 2.54 mm pitch1-Form-APeak Off-State Voltage : 40 V (MIN.)Trigger LED Current : 4 mA (MAX.)On-State Current : 80 mA (MAX.)On-State Resistance : 35 (MAX.)...

T L P 3 1 1 3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T L P 3 1 1 3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

4 pin SOP (2.54SOP4) : 2.1 mm high, 2.54 mm pitch
1-Form-A
 Peak Off-State Voltage : 40 V (MIN.)
Trigger LED Current : 4 mA (MAX.)
On-State Current : 80 mA (MAX.)
On-State Resistance : 35 (MAX.), 25  (TYP.)
Output Capacitance : 1.4 pF (MAX.), 0.6 pF (TYP.)
Isolation Voltage : 1500 Vrms (MIN.)



Pinout

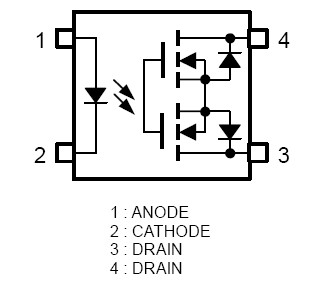

Connection Diagram


Specifications

Characteristic Symbol Rating Unit
LED Forward current IF 50 mA
Reverse voltage VR -0.5 V
Junction temperature Tj 125 °C
Detector OFF-state Output Voltage VOFF 40 V
On-state current ION 80 mA
On-State Current Derating (Ta >=25°C) ION/°C -0.8 mA/°C
Junction temperature Tj



125		 °C
Storage temperature range Tstg -40~125 °C
Operating temperature range Topr -20~85 °C
Lead soldering temperature (10 s) Tsol 260 °C
Isolation voltage (AC, 1min., RH 60%) (Note1) BVS 1500 Vrms
























Note 1: Device considered a two-pin device: Pins 1 and 2 shorted together, and pins 3 and 4 shorted togeth
