Product Details

Description



Features:

• Two-channel 8-bit ADC, three-channel 8-bit DAC, clamp circuit, and multiplexer integrated on single chip
• External field memory Recommended memory: MSM51V8221, MSM51V8222 (By Oki)
• Picture display functions
PAP display Half-picture left and right sides of 16:9 screen
(Motion Picture mode or Still mode selectable)
PIP display 4:3 or 16:9 aspect ratio
(Motion Picture mode or Still mode selectable)
POP display 4:3 aspect ratio
(3 pictures in Still mode, 1 picture in Motion Picture
Strobe mode selectable)
Multi-picture still Display of up to 24 still pictures per screen
Channel search 9, 12, or 16 picture search
(Still mode, Strobe mode, or 1 picture in Motion Picture
• Variable frame width and frame color
• Built-in horizontal and vertical filters
• I2C bus for micro controller interface
• 3.3-V single power supply
• Package: QFP144 Weight:


Pinout

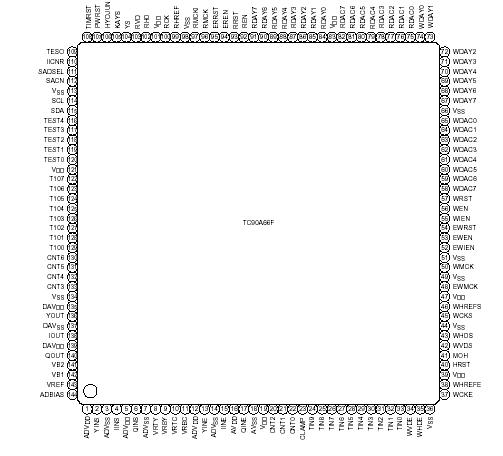

Connection Diagram


Description

With built-in AD and DA converters (ADC/DAC), the TC90A66F is a picture-and-picture (PAP)/picture-in-picture
(PIP)/picture-out-picture (POP) controller IC for PAL and NTSC formats. TC90A66F is used in combination with field memory, video signal processor ICs.

The TC90A66F enables a variety of picture display functions. The IC is optimal to provide wide-screen TVs with additional functionality.
