Product Details

Description



Features:

`Low equivalent input noise current, typically 126 nA (RMS)
`Wide dynamic range, typically 2.5 mA to 1.7 mA (p-p)
`Differential transimpedance of 7.5 k(typical)
`Bandwidth from DC to 1050 MHz (typical)
`Differential outputs
`On-chip AGC with possibility of external control
`Single supply voltage 3.3 V, range 2.97 V to 3.6 V
`Bias voltage for PIN diode
`On-chip current mirror of average photo current for RSSI monitoring
`Identical ports available on both sides of die for easy bond layout and RF polarity selection


Application

·Digital fiber optic receiver modules in telecommunications transmission systems,
   in high-speed data networks or in FTTx systems.


Pinout

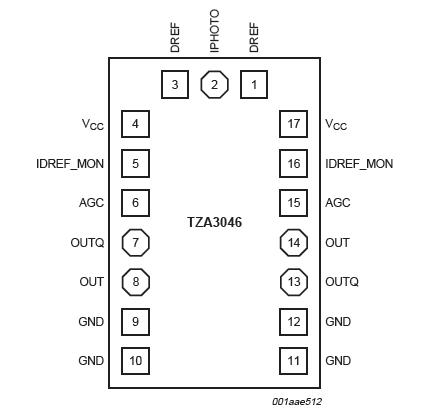

Connection Diagram


Description

The TZA3046 is a transimpedance amplifier with Automatic Gain Control (AGC), designed to be used in Fiber Channel/Gigabit Ethernet (FC/GE) fiber optic links. It amplifies the current generated by a photo detector (PIN diode or avalanche photodiode) and converts it to a differential output voltage. It offers a current mirror of average photo current for RSSI monitoring to be used in SFF-8472 compliant modules.

The low noise characteristics makes TZA3046 suitable for FC/GE applications, but also for FTTx applications.
