TZA3041AHL

Features: · 1.2 Gbits/s data input, both Current Mode Logic (CML) and Positive Emitter Coupled Logic (PECL) compatible;maximum 800 mV (p-p)· Adaptive laser output control with dual loop, stabilizing optical 1 and 0 levels· Optional external control of laser modulation and biasing currents (non-ada...

product image

TZA3041AHL Picture
See larger image
SeekIC No. : 004534355 Detail

TZA3041AHL: Features: · 1.2 Gbits/s data input, both Current Mode Logic (CML) and Positive Emitter Coupled Logic (PECL) compatible;maximum 800 mV (p-p)· Adaptive laser output control with dual loop, stabilizing...

TZA3041AHL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TZA3041AHL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1.2 Gbits/s data input, both Current Mode Logic (CML) and Positive Emitter Coupled Logic (PECL) compatible;maximum 800 mV (p-p)
· Adaptive laser output control with dual loop, stabilizing optical 1 and 0 levels
· Optional external control of laser modulation and biasing currents (non-adaptive)
· Automatic laser shutdown
· Few external components required
· Rise and fall times of 120 ps (typical value)
· Jitter <50 mUI (p-p)
· RF output current sinking capability of 60 mA
· Bias current sinking capability of 90 mA
· Power dissipation of 430 mW (typical value)
· Low cost LQFP32 5 ´ 5 plastic package
· Single 5 V power supply.


Application

· Gigabit Ethernet/Fibre Channel optical transmission systems
· Gigabit Ethernet/Fibre Channel optical laser modules.


Pinout

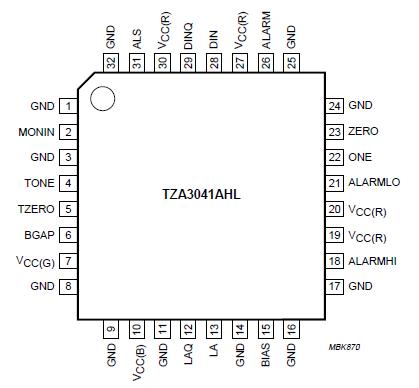

Connection Diagram


Specifications

SYMBOL
PARAMETER
MIN.
MAX.
UNIT

VCC

 supply voltages -0.5 +6 V
Vn DC voltage on
pin MONIN
pins TONE and TZERO
pin BGAP
pin BIAS
pins LA and LAQ
pin ALS
pins ONE and ZERO
pins DIN and DINQ
pin ALARM (TZA3041AHL)
pins ALARMHI and ALARMLO (TZA3041AHL)
pins DLOOP and DLOOPQ (TZA3041BHL)
pin ENL (TZA3041BHL)
1.3
-0.5
-0.5
-0.5
1.3
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
VCC + 0.5
VCC + 0.5
+3.2
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
V
V
V
V
V
V
V
V
V
V
V
V
In DC current on
pin MONIN
pins TONE and TZERO
pin BGAP
pin BIAS
pins LA and LAQ
pin ALS
pins ONE and ZERO
pins DIN and DINQ
pin ALARM (TZA3041AHL)
pins ALARMHI and ALARMLO (TZA3041AHL)
pins DLOOP and DLOOPQ (TZA3041BHL)
pin ENL (TZA3041BHL)


-0.5
-0.5
-2.0
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5


+2.5
+0.5
+2.5
+200
+100
+0.5
+0.5
+0.5
+10
+0.5
+0.5
+0.5


mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA

Tamb ambient temperature -40 +85 °C
Tj junction temperature -40 +125 °C
Tstg storage temperature -65 +150 °C



Description

The TZA3041AHL, TZA3041BHL and TZA3041U are fully integrated laser drivers for Gigabit Ethernet/Fibre Channel (1.2 Gbits/s) systems, incorporating the RF path between the data multiplexer and the laser diode. Since the dual loop bias and modulation control circuits are integrated on the IC, the external component count is low. Only decoupling capacitors and adjustment resistors are required.

The TZA3041AHL, TZA3041BHL and TZA3041U features an alarm function for signalling extreme bias current conditions. The alarm low and high threshold levels can be adjusted to suit the application using only a resistor or a current Digital-to-Analog Converter (DAC).The TZA3041BHL is provided with an additional RF data input to allow remote system testing (loop mode).The TZA3041U is a bare die version for use in compact laser module designs. The die contains 40 pads and features the combined functionality of the TZA3041AHL and the TZA3041BHL.
