TZA3023

Features: ` Wide dynamic input range from 1 A to 1.5 mA` Low equivalent input noise of 3.5 pA/Hz (typical)` Differential transimpedance of 21 k` Wide bandwidth from DC to 600 MHz` Differential outputs` On-chip Automatic Gain Control (AGC)` No external components required` Single supply voltage fro...

product image

TZA3023 Picture
See larger image
SeekIC No. : 004534345 Detail

TZA3023: Features: ` Wide dynamic input range from 1 A to 1.5 mA` Low equivalent input noise of 3.5 pA/Hz (typical)` Differential transimpedance of 21 k` Wide bandwidth from DC to 600 MHz` Differential outpu...

TZA3023 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TZA3023
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Wide dynamic input range from 1 A to 1.5 mA
` Low equivalent input noise of 3.5 pA/Hz (typical)
` Differential transimpedance of 21 k
` Wide bandwidth from DC to 600 MHz
` Differential outputs
` On-chip Automatic Gain Control (AGC)
` No external components required
` Single supply voltage from 3.0 to 5.5 V
` Bias voltage for PIN diode
` Pin compatible with SA5223.


Application

· Digital fibre optic receiver in short, medium and long haul optical telecommunications transmission systems or in high-speed data networks
· Wideband RF gain block.


Pinout

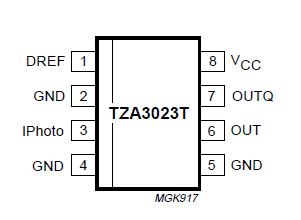

Connection Diagram


Specifications

SYMBOL
PARAMETER
MIN.
MAX.
UNIT

VCC

 supply voltage -0.5 +6 V
Vn DC voltage
pin 3/pad 4: IPhoto
pins 6 and 7/pads 9 and 10: OUT and OUTQ
pad 13: AGC (TZA3023U only)
pin 1/pad 1: DREF
- 0.5
- 0.5
- 0.5
- 0.5
+1
VCC + 0.5
VCC + 0.5
VCC + 0.5
V
V
V
V
In DC current
pin 3/pad 4: IPhoto
pins 6 and 7/pads 9 and 10: OUT and OUTQ
pad 13: AGC (TZA3023U only)
pin 1/pad 1: DREF
-1
-15
-0.2
-2.5


+2.5
+15
+0.2
+2.5


mA
mA
mA
mA

Ptot total power dissipation - 300 mW
Tstg storage temperature -65 +150 °C
Tj junction temperature - 125 °C
Tamb ambient temperature -40 +85 °C



Description

The TZA3023 is a low-noise transimpedance amplifier with AGC designed to be used in STM4/OC12 fibre optic links. TZA3023 amplifies the current generated by a photo detector (PIN diode or avalanche photodiode) and converts it to a differential output voltage.
