Product Details

Description

Features:

· A-rateä(1) from 30 Mbits/s to 3.2 Gbits/s
· Bias current up to 100 mA
· Modulation current up to 100 mA
· Rise and fall times typical 80 ps
· Jitter below 20 ps (peak-to-peak value)
· Modulation output voltage up to 2 V dynamic range
· 1.2 V minimum voltage on the modulation output pin and 0.4 V minimum voltage on pin BIAS
· Retiming function via external clock with disable option
· Pulse width adjustment function with disable option
· Positive Emitter Coupled Logic (PECL), Low Voltage Positive Emitter Coupled Logic (LVPECL) and Current-Mode Logic (CML) compatible data and clock inputs
· Internal common mode voltage available for AC-coupled data and clock inputs and for single-ended applications
· 3.3 V supply voltage
· TZA3011A: AC-coupled laser for 3.3 V laser supply
· TZA3011B: DC-coupled laser for 3.3 V and 5 V laser supply.
· Dual-loop control for constant and accurate optical average power level and extinction ratio (up to 2.7 Gbits/s)
· Optional average power loop control (up to 3.2 Gbits/s)
· Optional direct setting of modulation and bias currents.
· Alarm function on operating current
· Alarm function on monitor current
· Enable function on bias and modulation currents
· Soft start on bias and modulation currents.

Application

· SDH/SONET optical transmission systems
· High current drivers for converters
· High current drivers for high frequencies.

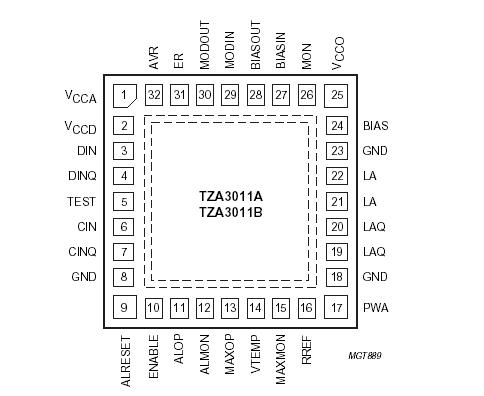

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITION	MIN.	MAX.	UNIT
VCCD	digital supply voltage		-0.5	+3.5	V
VCCA	analog supply voltage		-0.5	+3.5	V
VCCO	output supply voltage	3.3 V laser supply	-0.5	3.5	V
VCCO	output supply voltage	5 V laser supply	-0.5	5.3	V
Vo(LA)	output voltage at pin LA	TZA3011A;VCCO = 3.3 V	0.8	4.1	V
Vo(LA)	output voltage at pin LA	TZA3011B;VCCO = 5 V	1.2	4.5	V
Vo(LAQ)	output voltage at pin LAQ	TZA3011A;VCCO = 3.3 V	1.6	4.5	V
Vo(LAQ)	output voltage at pin LAQ	TZA3011B;VCCO = 5 V	2.0	5.2	V
VBIAS	bias voltage	TZA3011A;VCCO = 3.3 V	0.8	3.6	V
VBIAS	bias voltage	TZA3011B;VCCO = 5 V	0.8	4.1	V
Vn	voltage on all other input and output pins analog inputs and outputs digital inputs and outputs		-0.5 -0.5	VCCA+0.5 VCCD+0.5	V V
In	input current on pins MAXOP, MAXMON, RREF, PWA and AVR VTEMP and BIASOUT ALOP, ALMON and MON		-1.0 -1.0 0	0 +1.0 5.0	mA mA mA
Tamb	ambient temperature		-40	+85	°C
Tj	junction temperature		-40	+125	°C
Tstg	storage temperature		-65	+150	°C

Description

The TZA3011A is a fully integrated laser driver for optical transmission systems with data rates up to 3.2 Gbits/s.The TZA3011 incorporates all the necessary control and protection functions for a laser driver application with veryfew external components required and low power dissipation. The dual-loop controls the average monitor current in a programmable range from 150 mA to 1300 mA and the extinction ratio in a programmable range from 5 to 15 (linear scale).

The design is made in the Philips BiCMOS RF process and is available in a HBCC32 package or as bare die. TheTZA3011A is intended for use in an application with an AC-coupled laser diode with a 3.3 V laser supply voltage.The TZA3011B is intended for use in an application with a DC-coupled laser diode for both 3.3 and 5 V laser supply voltages.
