TZA3005H

Features: · Supports STM1/OC3 (155.52 Mbits/s) and STM4/OC12 (622.08 Mbits/s)· Supports reference clock frequencies of 19.44, 38.88,51.84 and 77.76 MHz· Meets Bellcore, ANSI and ITU-T specifications· Meets ITU jitter specification typically to a factor of 2.5· Integral high-frequency PLL for clock...

product image

TZA3005H Picture
See larger image
SeekIC No. : 004534335 Detail

TZA3005H: Features: · Supports STM1/OC3 (155.52 Mbits/s) and STM4/OC12 (622.08 Mbits/s)· Supports reference clock frequencies of 19.44, 38.88,51.84 and 77.76 MHz· Meets Bellcore, ANSI and ITU-T specifications...

TZA3005H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TZA3005H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supports STM1/OC3 (155.52 Mbits/s) and STM4/OC12 (622.08 Mbits/s)
· Supports reference clock frequencies of 19.44, 38.88,51.84 and 77.76 MHz
· Meets Bellcore, ANSI and ITU-T specifications
· Meets ITU jitter specification typically to a factor of 2.5
· Integral high-frequency PLL for clock generation
· Interface to TTL logic
· Low jitter PECL (Positive Emitter Coupled Logic) interface
· 4 or 8-bit STM1/OC3 TTL data path
· 4 or 8-bit STM4/OC12 TTL data path
· No external filter components required
· QFP64 package
· Diagnostic and line loopback modes
· Lock detect
· LOS (Loss of Signal) input
· Low power (0.9 W typical)
· Selectable frame detection and byte realignment
· Loop timing
· Forward and reverse clocking
· Squelched clock operation
· Self-biased PECL inputs to support AC coupling.


Application

· SDH/SONET modules
· SDH/SONET-based transmission systems
· SDH/SONET test equipment
· ATM (Asynchronous Transfer Mode) over SDH/SONET
· Add drop multiplexers
· Broadband cross-connects
· Section repeaters
· Fibre optic test equipment
· Fibre optic terminators.


Pinout

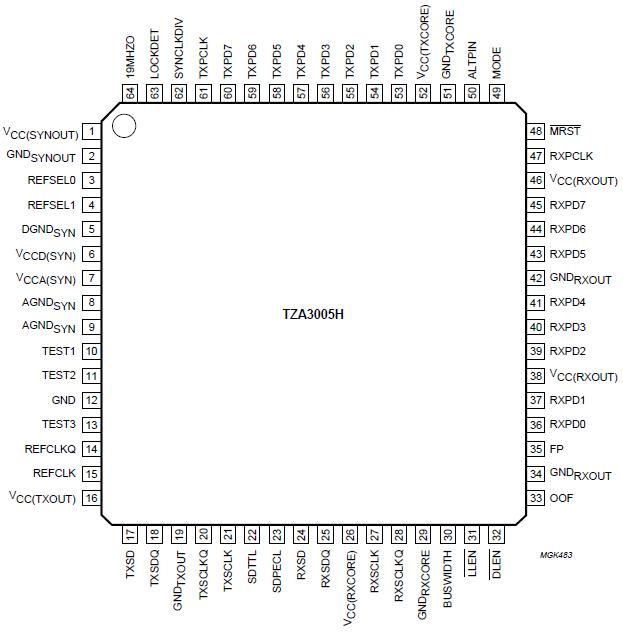

Connection Diagram


Specifications

SYMBOL
PARAMETER
MIN.
MAX.
UNIT

VCC

 supply voltage -0.5 +6 V
Vn voltage
on any input pin
between two differential PECL input pins
on SDPECL input pin
-0.5
-2
VCC - 3
VCC + 0.5
+ 2
VCC + 0.5
V
V
V
In current
into any TTL output pin
nto any PECL output pin
-8
-50


+8
+1.5


mA
mA

Ptot total power dissipation - 1.5 W
Tstg storage temperature -65 +150 °C
Tj(bias) junction temperature under bias -55 +125 °C
Tcase(bias) case temperature under bias -55 +100 °C



Description

The TZA3005H SDH/SONET transceiver chip is a fully integrated serialization/deserialization STM1/OC3 (155.52 Mbits/s) and STM4/OC12 (622.08 Mbits/s)interface device. It performs all necessary serial-to-parallel and parallel-to-serial functions in accordance with SDH/SONET transmission standards. It is suitable for SONET-based applications and can be used in conjunction with the data and clock recovery unit (TZA3004), optical front-end (TZA3023 with TZA3034/44) and a laser driver (TZA3001). A typical network application is shown in Fig.10.

A high-frequency phase-locked loop is used for on-chip clock synthesis, which allows a slower external transmit reference clock to be used. A reference clock of 19.44,38.88, 51.84 or 77.76 MHz can be used to support existing system clocking schemes. The TZA3005H also performs SDH/SONET frame detection.

The low jitter PECL interface ensures that Bellcore, ANSI,and ITU-T bit-error rate requirements are satisfied.The TZA3005H is supplied in a compact QFP64 package.
