TZA3005

Features: · Supports STM1/OC3 (155.52 Mbits/s) and STM4/OC12 (622.08 Mbits/s)· Supports 19.44, 38.88, 51.84 and 77.76 MHz reference clock frequencies· Meets Bellcore, ANSI and ITU-T specifications· Integral high-frequency PLL for clock generation· Interface to TTL logic· Low jitter PECL (Positive ...

product image

TZA3005 Picture
See larger image
SeekIC No. : 004534334 Detail

TZA3005: Features: · Supports STM1/OC3 (155.52 Mbits/s) and STM4/OC12 (622.08 Mbits/s)· Supports 19.44, 38.88, 51.84 and 77.76 MHz reference clock frequencies· Meets Bellcore, ANSI and ITU-T specifications· ...

TZA3005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TZA3005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supports STM1/OC3 (155.52 Mbits/s) and STM4/OC12 (622.08 Mbits/s)
· Supports 19.44, 38.88, 51.84 and 77.76 MHz reference clock frequencies
· Meets Bellcore, ANSI and ITU-T specifications
· Integral high-frequency PLL for clock generation
· Interface to TTL logic
· Low jitter PECL (Positive Emitter Coupled Logic) interface.
· 4- or 8-bit STM1/OC3 TTL/CMOS data path
· 4- or 8-bit STM4/OC12 TTL/CMOS data path
· No external filter components required
· QFP64 package
· Diagnostic and line loopback modes
· Lock detect
· LOS (Loss of Signal) input
· Low power (900 mW typically)


Application

· SDH/SONET modules
· SDH/SONET-based transmission systems
· SDH/SONET test equipment
· ATM over SDH/SONET
· Add drop multiplexers
· Broadband cross-connects
· Section repeaters
· Fiber optic test equipment.
· Fiber optic terminators

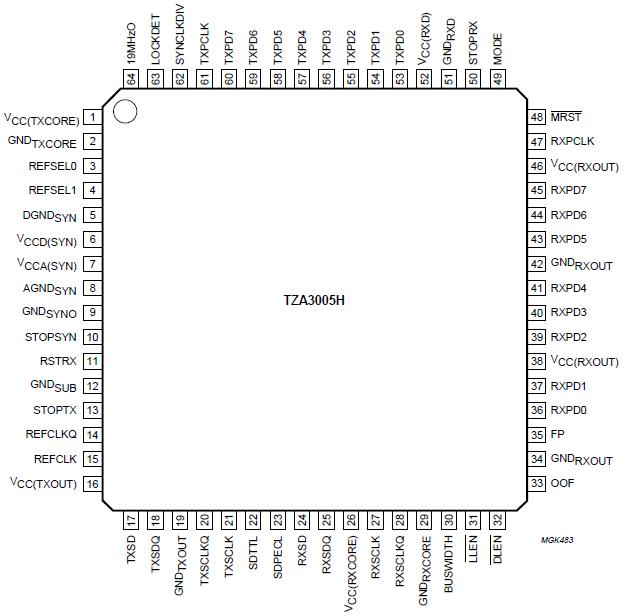

Pinout

Connection Diagram


Specifications

SYMBOL
PARAMETER
MIN.
MAX.
UNIT

VCC

 supply voltage -0.5 +6.5 V
Vn voltage on
any TTL input pin
any PECL input pin
-0.5
0
+ 5.5
VCC
V
V
Io(sink) CMOS output sink current - 8 mA
Io(source) output source current
CMOS
high speed PECL
-
-


8
50


mA
mA

Ptot total power dissipation - 1.3 W
Tcase case temperature under bias -55 +100 °C
Tj junction temperature under bias -55 +125 °C
Tstg storage temperature -65 +150 °C



Description

The TZA3005 SDH/SONET transceiver chip is a fully integrated serialization/deserialization SDH/SONET STM4/OC12 (622.08 Mbits/s) and STM1/OC3 (155.52 Mbits/s) interface device. It performs all necessary serial-to-parallel and parallel-to-serial functions in accordance with SDH/SONET transmission standards. It is suitable for SONET-based applications and can be used in conjunction with the TZA3004 clock recovery device, the TZA3000 optical receiver and the TZA3001 laser driver. Figure 13 shows a typical network application.

A high-frequency phase-locked loop is used for on-chip clock synthesis, which means a slower external transmit reference clock can be used. A 19.44, 38.88, 51.84 or 77.76 MHz reference clock can be used, in support of existing system clocking schemes. The TZA3005 performs SDH/SONET frame detection.

The low jitter PECL interface ensures that Bellcore, ANSI,and ITU-T bit-error rate requirements are satisfied. The TZA3005 comes in a compact QFP64 package.
