TZA1000

Features: ` 3-wire serial interface for programming` On-chip Digital-to-Analog Converters (DAC) for: MR (Magneto Resistive) sense bias current MR DC bias current Write current` Low noise differential input stage: typically 0.65 nV/Hz (Zi = 0 )` Magnetic feedback circuit to handle large output sign...

product image

TZA1000 Picture
See larger image
SeekIC No. : 004534313 Detail

TZA1000: Features: ` 3-wire serial interface for programming` On-chip Digital-to-Analog Converters (DAC) for: MR (Magneto Resistive) sense bias current MR DC bias current Write current` Low noise differentia...

TZA1000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TZA1000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 3-wire serial interface for programming
` On-chip Digital-to-Analog Converters (DAC) for:
MR (Magneto Resistive) sense bias current
MR DC bias current
Write current
` Low noise differential input stage: typically 0.65 nV/Hz (Zi = 0 )
` Magnetic feedback circuit to handle large output signals
` MR DC bias current circuit
` Very fast write current rise and fall times with near rail-to-rail voltage swing
` Maximum write current of 100 mA: ready for high coercivity tape
` Low noise read amplifier for reading track height servo signals with the write coil
` Very few external components required
` On board registers for easy format or bit rate selection
` Fast read-after-write recovery time
` Test circuit for yoke-type heads
` Switchable differentiator for yoke-type heads, with programmable cut-off frequencies
` Anti-aliasing low-pass filter, with programmable cut-off frequencies
` AGC (Automatic Gain Control) options: internally (digitally) controlled, externally controlled or fixed gain
` Hold input for fast AGC freeze
` Input for fast reader/writer (track height servo) signal selection
` Power fail detection on both 5 and 12 V lines (status can be read from the read register)
` Write unsafe detection
` Provides an accurate reference voltage (for AD conversion)
` Very simple interconnection with the SZA1000 QIC digital equalizer
` +5 V ±10% and +12 V ±10% supply voltages
` Low power standby, active and test modes.


Pinout

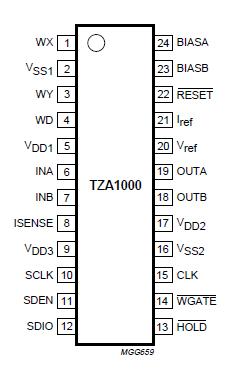

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VDD1 read circuit supply voltage   -0.3 +5.5 V
VDD2 FB and write circuit supply voltage   -0.3 +5.5 V
VDD3 sense current circuit supply voltage   -0.3 +13.2 V
IDD1 read circuit supply current   - 150 mA
IDD2 FB and write circuit supply current   - 35 mA
IDD3 sense current circuit supply current   - 35 mA
II(n) input current on remaining pins   -10 +10 mA
Ptot maximum total power dissipation   - 1000 mW
Tamb ambient temperature   0 +70 °C
Tj junction temperature note 1 0 +135 °C
Tstg storage temperature   -50 +150 °C
VES(HB) electrostatic handling: human body model note 2 -1000 +1000 V
VES(MM) electrostatic handling: machine model note 3 -200 +200 V



Description

The TZA1000 is a single-chip read-write amplifier for single-channel QIC (Quarter Inch Cartridge) systems with MR heads.TZA1000can be used with both SIG Sensor in Gap)-and yoke-type MR heads and is designed to be used in conjunction with the Philips SZA1000 digital equalizer IC (although it can also function as a stand alone unit). This combination is flexible enough to be used with all popular tape backup formats including QIC 80, QIC 3010,QIC 3020, QIC 3080, QIC 5010, Travan 1, Travan 2,Travan 3 and Travan 4 and to be forward compatible with their single channel successors.
