TX5001

RF Receiver 2G ASH Transmitter 315 MHz 115.2 kbps

product image

TX5001 Picture
See larger image
SeekIC No. : 00614264 Detail

TX5001: RF Receiver 2G ASH Transmitter 315 MHz 115.2 kbps

TX5001 Data Sheet

floor Price/Ceiling Price

US $ 2.87~3.58 / Piece | Get Latest Price
Part Number:
TX5001
Mfg:
RFM
Supply Ability:
5000

Price Break

  • Qty
  • 0~155
  • 155~250
  • 250~500
  • Unit Price
  • $3.58
  • $3.41
  • $2.87
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Transmitter Package / Case : SM-20L
Operating Frequency : 315.2 MHz Operating Supply Voltage : 2.5 V, 3.3 V
Packaging : Reel

Description

Packaging : Reel
Type : Transmitter
Operating Supply Voltage : 2.5 V, 3.3 V
Package / Case : SM-20L
Operating Frequency : 315.2 MHz


Features:

·Designed for Short-Range Wireless Data Communications
·Supports RF Data Transmission Rates Up to 115.2 kbps
·3 V, Low Current Operation plus Sleep Mode
·Stable, Easy to Use, Low External Parts Count

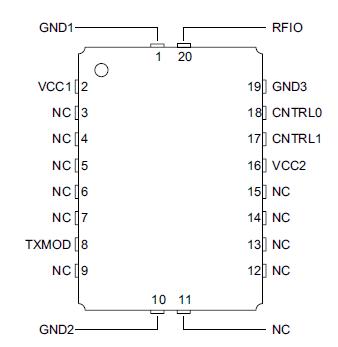

Pinout

Connection Diagram




Specifications

Rating
Value
Units
Power Supply and All Input/Output Pins
-0.3 to +4.0
V
Non-Operating Case Temperature
-50 to +100
oC
Soldering Temperature (10 seconds)
250
oC





Description

The TX5001 hybrid transmitter is ideal for short-range wireless data applications Transmitter where robust operation, small size, low power consumption and low cost are required.All critical RF functions are contained in the hybrid, simplifying and speeding designin.The TX5001 includes provisions for both on-off keyed (OOK) and amplitude-shift keyed (ASK) modulation. The TX5001 employs SAW filtering to suppress output harmonics,facilitating compliance with FCC Part 15 and similar regulations.
