TWL1101

Features:

` 3-V Operation
` Two Differential Microphone Inputs, One Differential Earphone Output, and One Single-Ended Earphone Output
` Programmable Gain Amplifiers for Transmit, Receive, Sidetone, and Volume Control
` Earphone Mute and Microphone Mute
` On-chip I<sup>2</sup>C-Bus, Which Provides a Simple,Standard, Two-Wire Serial Interface with Digital ICs
` Programmable for 13-Bit Linear Data or 8-Bit Companded (-Law) Data
` Available in a 48-Pin TQFP Package, a 64-Pin <sup>*</sup>BGA Package, and a
` Designed for Analog and Digital Wireless Handsets and Telecommunications Applications
` TX Channel AGC Function Available Through PCM Interface or I²C Bus

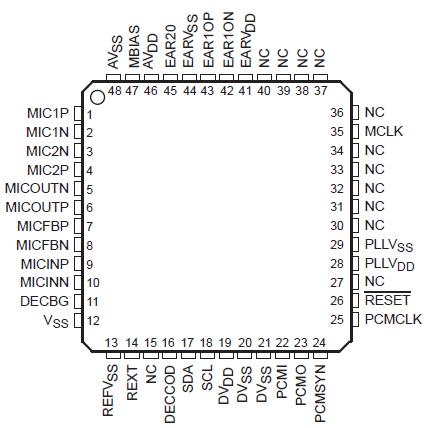

Pinout




Specifications

Supply voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7.5 V
Output voltage range at DOUT,VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7.5 V
Input voltage range at DIN, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7.5 V
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free air temperature range (industrial temp) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C


Description

The TWL1101 voice-band audio processor (VBAP) is designed to perform the transmit encoding analog/digital (A/D) conversion and receive decoding digital/analog (D/A) conversion, together with transmit and receive filtering for voice-band communications systems.The device operates in either the 13-bit linear or 8-bit companded m-law mode, which is selectable through the
I²C interface.From a 2.048-MHz master clock input, the VBAP generates its own internal clocks.The TWL1101 device is characterized for operation from 40°C to 85°C.
