TW2802

Features: ·Accepts all NTSC (M/N/4.43) / PAL (B/D/G/H/I/K/L/M/N/60) standard formats with auto detection·Four 10-bit video CMOS analog to digital converters·Adjust video level with proprietary automatic clamp and gain control system·Proprietary architecture for locking to weak, noisy, or unstable ...

product image

TW2802 Picture
See larger image
SeekIC No. : 004533985 Detail

TW2802: Features: ·Accepts all NTSC (M/N/4.43) / PAL (B/D/G/H/I/K/L/M/N/60) standard formats with auto detection·Four 10-bit video CMOS analog to digital converters·Adjust video level with proprietary autom...

TW2802 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TW2802
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Accepts all NTSC (M/N/4.43) / PAL (B/D/G/H/I/K/L/M/N/60) standard formats with auto detection
· Four 10-bit video CMOS analog to digital converters
· Adjust video level with proprietary automatic clamp and gain control system
· Proprietary architecture for locking to weak, noisy, or unstable signals
· High performance adaptive comb filters for all NTSC/PAL standards
· IF compensation filter for improvement of color demodulation
· PAL delay lines for correcting PAL phase errors
· Programmable hue, saturation, contrast,brightness and sharpness
· Dual high quality horizontal and vertical down scaler for each channel
· Four built-in motion detectors for security system
· Supports the standard ITU-R BT.656 / 8bit ITU-R BT.601 format
· Supports two differently scaled output mode with 54MHz ITU-R BT.656 format
· Supports a two-wire serial or parallel interface
· Low power consumption
· 128 PQFP package


Application

Security systems


Pinout

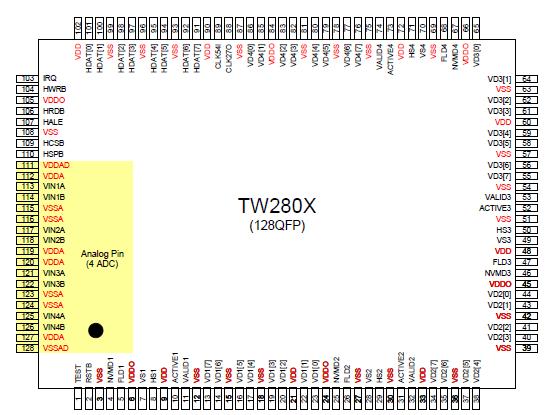

Connection Diagram


Specifications

Parameter
Symbol
Min
Typ
Max
Units
VDDA (measured to VSSA)
VDDAM


3.5
V
VDD (measured to VSS)
VDDIM


3.5
V
VDDO (measured to VSS)
VDDOM


4.6
V
Voltage on any signal pin
(See the note below)
-
VSS0.5

VDDO+0.5
V
Analog Input Voltage
-
VSSA0.5

VDDA+0.5
V
Storage Temperature
TS
65

150
°C
Junction Temperature
TJ
0

125
°C
Vapor Phase Soldering (15 Seconds)
TVSOL


220
°C
