Product Details

Description



Features:

• Digital Input Formats:
   YUV 4:2:2 on a 16-Bit Port
  CCIR-656 YUV 4:2:2 on an 8-Bit Port
  YUV 4:2:2 on an 8-Bit Port
• CCIR601 or Square Pixel Operation
• Analog Output Formats:
  NTSC-M
  PAL-B,D,G,H,I
  PAL-M
  PAL-N
  PAL-Nc
• Simultaneous S-Video and CVBS (Composite Baseband Video) Output
• 2x Over-Sampling
• 3-Tap Antiflicker Filter
• Triple 10-Bit DACs
• Overscan Compensation
• Programmable Video Port Interface
• Supports Master, Slave, CCIR656 and Demand Mode Video Port Interface
• Programmable Blank Level, Black Level, and Color Burst Amplitude
• Programmable Luminance and Chrominance Gains
• Programmable Subcarrier Frequency
• Programmable SCH
• Subcarrier Genlock Capability
• Programmable Luminance Delay
• I2C Serial Interface
• On Chip Color Bar Generation
• Closed Caption Support
• Software Detection of TV Connection
• On Chip Voltage Reference
• Cross Color Reduction Filter
• Power Down Mode
• 80-pin TQFP Package
• 5-V Operation
• Supports PC98 Hardware Design Specification
• SMPTE 170M NTSC Composite Video Specification Compliant
• CCIR624/CCIR601 PAL Composite Video Specification Compliant


Application

• Digital Entertainment/ Set Top Box
• Internet PC
• Internet Appliance
• PC-to-TV Appliance
• Digital Video Disk (DVD)
• Digital Video Camera


Pinout

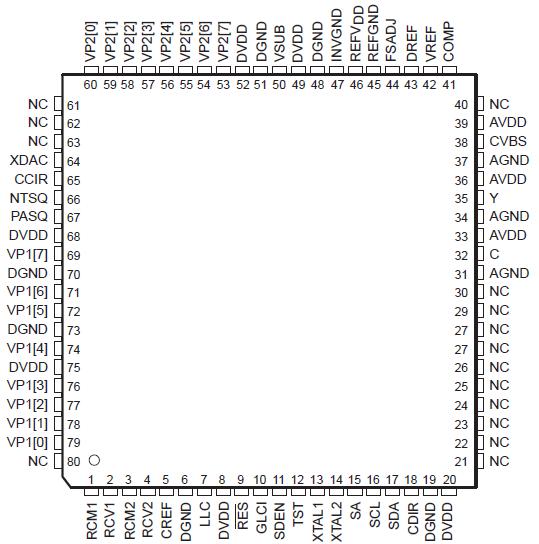

Connection Diagram


Specifications

Digital power supply voltage range, DVDD . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Analog power supply voltage range, AVDD . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Digital input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 5.5 V
Digital output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 V to 5.5 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Maximum total power dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 W
