TVP5146PFP

Video ICs 10B High Qual S-Chip Dig Vid Decoder

product image

TVP5146PFP Picture
See larger image
SeekIC No. : 00475397 Detail

TVP5146PFP: Video ICs 10B High Qual S-Chip Dig Vid Decoder

TVP5146PFP Data Sheet

floor Price/Ceiling Price

US $ 3.47~5.1 / Piece | Get Latest Price
Part Number:
TVP5146PFP
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $5.1
  • $4.18
  • $3.77
  • $3.47
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Maximum Operating Temperature : + 70 C Package / Case : HTQFP-80
Packaging : Tube

Description

Operating Supply Voltage :
Supply Current :
Package / Case : HTQFP-80
Packaging : Tube
Maximum Operating Temperature : + 70 C


Application

• Digital TV
• LCD TV/monitors
• DVD-R
• PVR
• PC video cards
• Video capture/video editing
• Video conferencing

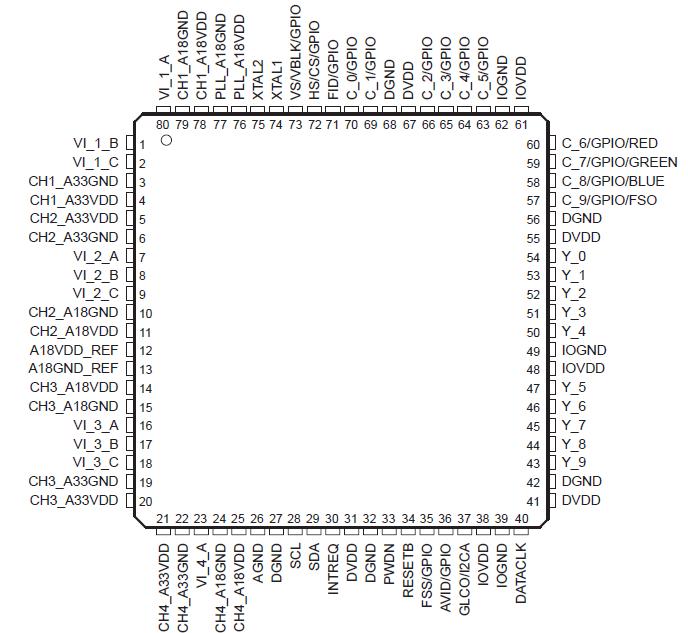

Pinout

Connection Diagram


Specifications

Supply voltage range: IOVDD to I/O GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.0 V
                                    DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.2 V to 2.0 V
                                    A33VDD (see Note 1) to A18GND (see Note 2) . . . . . . . . . . . . . . . . . . .−0.3 V to 3.6 V
                                    A18VDD (see Note 3) to A33GND (see Note 4) . . . . . . . . . . . . . . . . . . .−0.2 V to 2.0 V
Digital input voltage, VI to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.5 V
Digital output voltage, VO to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −0.5 V to 4.5 V
Analog input voltage range AIN to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.2 V to 2.0 V
Operating free-air temperature, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C


Parameters:

Technical/Catalog InformationTVP5146PFP
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeVideo Decoder
ApplicationsMonitors, TV
Mounting TypeSurface Mount
Package / Case80-TQFP Exposed Pad, 80-eTQFP, 80-HTQFP
Voltage - Supply, Analog1.8V, 3.3V
Voltage - Supply, Digital1.8V, 3.3V
PackagingTray
Drawing Number296; 4146925; PFP; 80
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TVP5146PFP
TVP5146PFP
296 16649 ND
29616649ND
296-16649
