Product Details

Description



Application

• Digital TV
• LCD TV/monitors
• DVD-R
• PVR
• PC video cards
• Video capture/video editing
• Video conferencing

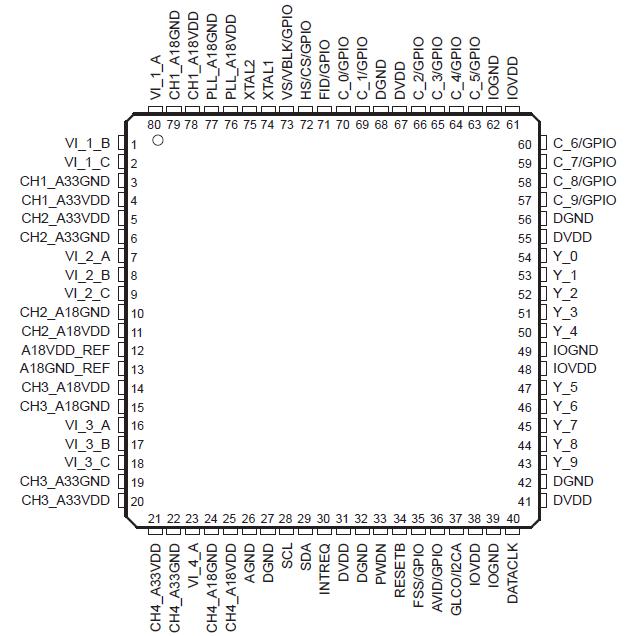

Pinout

Connection Diagram


Specifications

Supply voltage range: IOVDD to I/O GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4 V
                                    DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.2 V to 2 V
                                    A33VDD (see Note 1) to A18GND (see Note 2) . . . . . . . . . . . . . . . . . . .  .−0.3 V to 3.6 V
                                    A18VDD (see Note 3) to A33GND (see Note 4) . . . . . . . . . . . . . . . . . . . . . .−0.2 V to 2 V
Digital input voltage, VI to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 4.5 V
Digital output voltage, VO to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 4.5 V
Analog input voltage range AIN to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.2 V to 2 V
Operating free-air temperature, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −65°C to 150°C
