TVP5031

Features: • Accepts NTSC (M) and PAL (B, D, G, H, I, M, N) composite video• Two analog video inputs for composite video• A fully differential CMOS analog preprocessing channel with clamping and AGC for best S/N performance• High speed 2x over-sampling 9-bit A/D converter...

product image

TVP5031 Picture
See larger image
SeekIC No. : 004533929 Detail

TVP5031: Features: • Accepts NTSC (M) and PAL (B, D, G, H, I, M, N) composite video• Two analog video inputs for composite video• A fully differential CMOS analog preprocessing channel with...

TVP5031 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TVP5031
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Accepts NTSC (M) and PAL (B, D, G, H, I, M, N) composite video
• Two analog video inputs for composite video
• A fully differential CMOS analog preprocessing channel with clamping and AGC for best S/N performance
• High speed 2x over-sampling 9-bit A/D converter
• Patented architecture for locking to weak, noisy, or unstable signals
• Single 14.31818 MHz reference crystal for all standards
• Line-locked clock and sampling at square-pixel or 27 MHz rates
• Programmable output data rates:
  12.2727 MHz Square-Pixel (NTSC)
  14.7500 MHz Square-Pixel (PAL)
  13.5 MHz ITU-R BT.601 (NTSC and PAL)
• Optional automatic switching between PAL and NTSC standards
• Complementary 3-line (2-H delay) adaptive comb filters for both cross-luminance and cross-chrominance
noise reduction
• Subcarrier genlock output for synchronizing color subcarrier of external encoder
• Standard programmable video output formats:
  16-bit 4:2:2 YCbCr
  20-bit 4:2:2 YCbCr
  8-bit 4:2:2 YCbCr
  10-bit 4:2:2 YCbCr
  ITU-R BT.656 8-bit 4:2:2 with embedded syncs
  ITU-R BT.656 10-bit 4:2:2 with embedded syncs
• Advanced programmable video output formats:
  2x oversampled raw VBI data during active video
  Sliced VBI data as ancillary data in video stream
• Teletext (NABTS, WST) and closed-caption decode with FIFO
• Programmable host port options including I2C and three parallel host interface (PHI) modes
• Brightness, contrast, saturation , and hue control through host port
• 5-V tolerant digital I/O ports
• 80-pin TQFP package


Application

• Digital image processing
• Video conferencing
• Multimedia
• Digital video
• Desktop video
• Video capture
• Video editing
• Security applications


Pinout

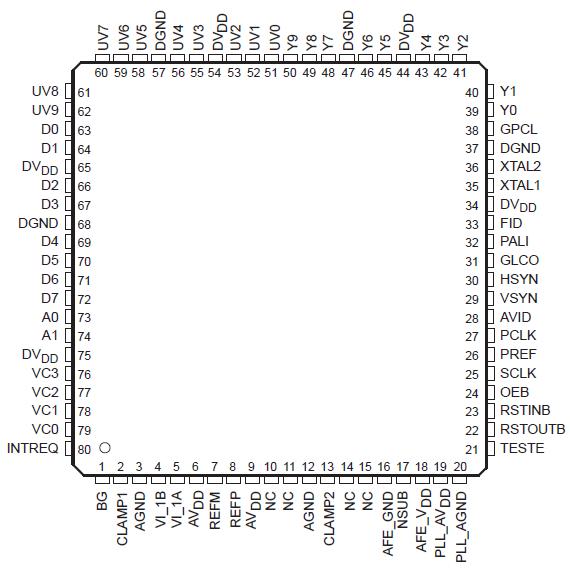

Connection Diagram


Specifications

Digital power supply voltage, DVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to 3.6 V
Analog power supply voltage, AVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 3.6 V
Digital input voltage, Vi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to DVdd+0.3 V
Operating free-air temperature, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Maximum total power dissipation, Pd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 W
