TVP3409

Features: • Functionally Interchangeable with ATT20C409• 170/135 MHz (0.8 mm CMOS) 170 MHz 2:1 Multiplex 8-Bit Pseudocolor 73 MHz True Color• 16-Bit Pixel Port Usable as an 8-Bit Port Compatible With ATT20C490 Using P(70) Compatible With ATT20C498 Using P(150)• 9 Softwa...

product image

TVP3409 Picture
See larger image
SeekIC No. : 004533925 Detail

TVP3409: Features: • Functionally Interchangeable with ATT20C409• 170/135 MHz (0.8 mm CMOS) 170 MHz 2:1 Multiplex 8-Bit Pseudocolor 73 MHz True Color• 16-Bit Pixel Port Usable as an 8-Bit...

TVP3409 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TVP3409
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Functionally Interchangeable with ATT20C409
• 170/135 MHz (0.8 mm CMOS)
  170 MHz 2:1 Multiplex 8-Bit Pseudocolor
  73 MHz True Color
• 16-Bit Pixel Port Usable as an 8-Bit Port
  Compatible With ATT20C490 Using P(70)
  Compatible With ATT20C498 Using P(150)
• 9 Software Selectable Color Modes
  24-Bit Packed Pixel
  24-Bit True Color
8-Bit Pseudocolor
• Dual Programmable Clock Synthesizers
  Pixel Clock and Memory Clock
  Reset to 28.322-MHz and 25.175-MHz VGA Frequencies
  Strobe Input Latches Frequency Select Lines
• On-Chip PLL Clock Doubler
  85 MHz input
  170 MHz Pixel Output
• 2:1 and 1:1 Pixel Multiplexing
• Power Dissipation of 1.19 W at 135 MHz Typical
• 256 * 24 Color RAM
• Triple 8-Bit Monotonic Digital-to-Analog Converters (DACs)
• Software Compatible With the AT&T ATT20C498/499/409
• 68-Terminal Plastic Leaded Chip Carrier (PLCC) Package


Application

• Performance Available With 2M-Byte Frame Buffer (noninterlaced)
  1600 * 1280 Resolution, 8 Bits/Pixel, 60 Hz
  1024 * 768 Resolution, 16 Bits/Pixel, 100 Hz
  800 * 600 Resolution, 24 Bits/Pixel, Unpacked, 75 Hz
  800 * 600 Resolution, 24 Bits/Pixel, Packed, 110 Hz
• Additional Performance Available With 3M-Byte Frame Buffer (noninterlaced)
  1280 * 1024 Resolution, 16 Bits/Pixel, 60 Hz
  1024 * 768 Resolution, 24 Bits/Pixel, Packed, 67 Hz
• True-Color Desktop, PC Add-in Card
• X-Windows Terminals
• Green PCs

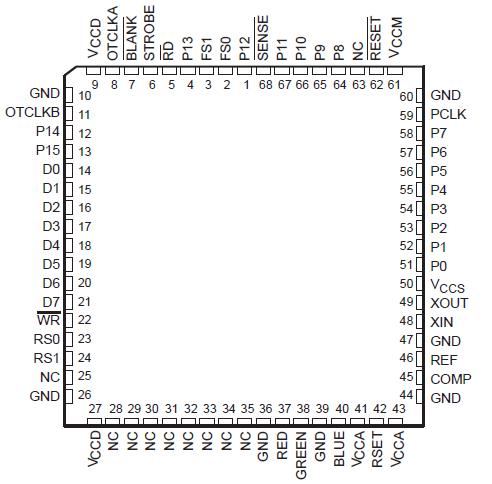

Pinout

Connection Diagram


Specifications

Supply voltage, VCC (measured to GND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage range VI (any digital terminal) . . . . . . . . . . . . . . .  GND 0.5 to VCC + 0.5 V
Analog output short circuit duration to any power supply or common . . . . . . . . . unlimited
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Case temperature for 10 seconds, TC: FN package . . . . . . . . . . . . . . . . . . . . . . . . .  260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . .  260°C
