Features:

• Supports System Resolutions up to 1600 * 1280 @ 86-Hz Refresh Rate
• Supports Color Depths of 4, 8, 16, 24 and 32 Bit/Pixel, All at Maximum Resolution
• 128-Bit-Wide Pixel Bus
• Versatile Direct-Color Modes:
  24-Bit/Pixel with 8-Bit Overlay (O, R, G, B)
  24-Bit/Pixel Packed-24 (R, G, B)
  16-Bit/Pixel (5, 6, 5) XGA Configuration
  16-Bit/Pixel (6, 6, 4) Configuration
  15-Bit/Pixel With 1 Bit Overlay (1, 5, 5, 5) TARGA Configuration
  12-Bit/Pixel With 4 Bit Overlay (4, 4, 4, 4)
• True-Color Gamma Correction
• Supports Packed Pixel Formats for 24 Bit/Pixel Using a 32, 64, or 128 Bit/Pixel Bus
• 50% Duty Cycle Reference Clock for Higher Screen Refresh Rates in Packed-24 Modes
• Programmable Frequency Synthesis PLLs for Dot Clock and Memory Clock
• Loop Clock PLL Compensates for System Delay and Guarantees Reliable Data Latching
• Versatile Pixel Bus Interface Supports Little- and Big-Endian Data Formats
• 175-, 220- and 250-MHz Versions
• On-Chip Hardware Cursor, 64 * 64 * 2 Cursor (XGA and X-Windows Functionally Compatible)
• Byte Router Allows Use of R, G, or B Direct-Color Channels Individually
• Direct Interfacing to Video RAM
• Supports Overscan for Creation of Custom Screen Borders
• Color-Keyed Switching of Direct Color and True Color or Overlay
• Triple 8-Bit D/A Converters
• Analog Output Comparators for Monitor Detection
• RS-343A Compatible Outputs
• Direct VGA Pass-Through Capability
• Palette Page Register
• Horizontal Zooming Capability
• EPIC 0.8-mm CMOS Process


Pinout

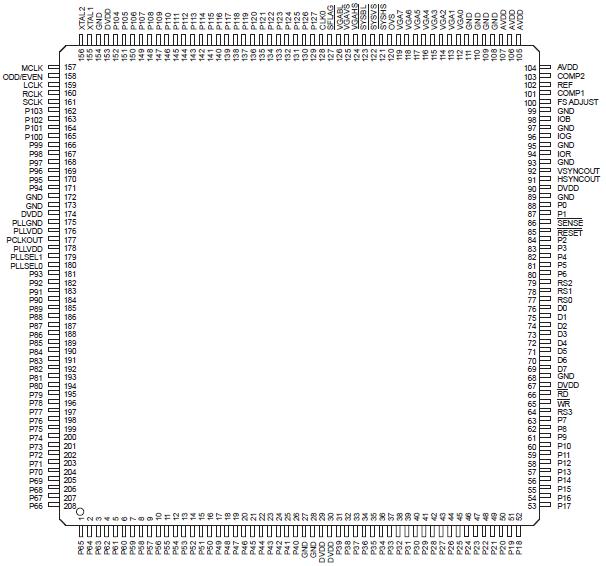

Connection Diagram


Specifications

Supply voltage, VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VDD + 0.5 V
Analog output short-circuit duration to any power supply or common . . . . . . . . .  unlimited
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Junction temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175°C
Case temperature for 10 seconds: PCA and MEP packages . . . . . . . . . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . 260°C
