TVP3026

Features: • Supports system resolutions up to 1600 * 1280 @ 76-Hz refresh rate• Supports color depths of 4, 8, 16, 24 and 32 bit/pixel• 64-bit-wide pixel bus• Versatile direct-color modes: 24-bit/pixel with 8-bit overlay (O, R, G, B) 24-bit/pixel (R, G, B) 16-bit/pixel (...

product image

TVP3026 Picture
See larger image
SeekIC No. : 004533920 Detail

TVP3026: Features: • Supports system resolutions up to 1600 * 1280 @ 76-Hz refresh rate• Supports color depths of 4, 8, 16, 24 and 32 bit/pixel• 64-bit-wide pixel bus• Versatile direc...

TVP3026 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TVP3026
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports system resolutions up to 1600 * 1280 @ 76-Hz refresh rate
• Supports color depths of 4, 8, 16, 24 and 32 bit/pixel
• 64-bit-wide pixel bus
• Versatile direct-color modes:
  24-bit/pixel with 8-bit overlay (O, R, G, B)
  24-bit/pixel (R, G, B)
  16-bit/pixel (5, 6, 5) XGA configuration
  16-bit/pixel (6, 6, 4) configuration
  15-bit/pixel with 1 bit overlay (1, 5, 5, 5) TARGA configuration
  12-bit/pixel with 4 bit overlay (4, 4, 4, 4)
• True-color gamma correction
• Supports packed pixel formats for 24 bit/pixel using a 32-or 64-bit/pixel bus
• 50% duty cycle reference clock for higher screen refresh rates in packed-24 modes
• Programmable frequency synthesis phase-locked loops (PLLs) for dot clock and memory clock
• Loop clock PLL compensates for system delay and ensures reliable data latching
• Versatile pixel bus interface supports little- and big-endian data formats
• 135-, 175-, and 220-MHz versions
• On-chip hardware cursor, 64 * 64 * 2 cursor (XGA and X-windows functionally compatible)
• Direct interfacing to video RAM
• Supports overscan for creation of custom screen borders
• Color-keyed switching of direct color and true color or overlay
• Hardware port select switching between direct color and true color or overlay
• Triple 8-Bit D/A converters
• Analog output comparators for monitor detection
• RS-343A compatible outputs
• Direct VGA pass-through capability
• Palette page register
• Horizontal zooming capability


Pinout

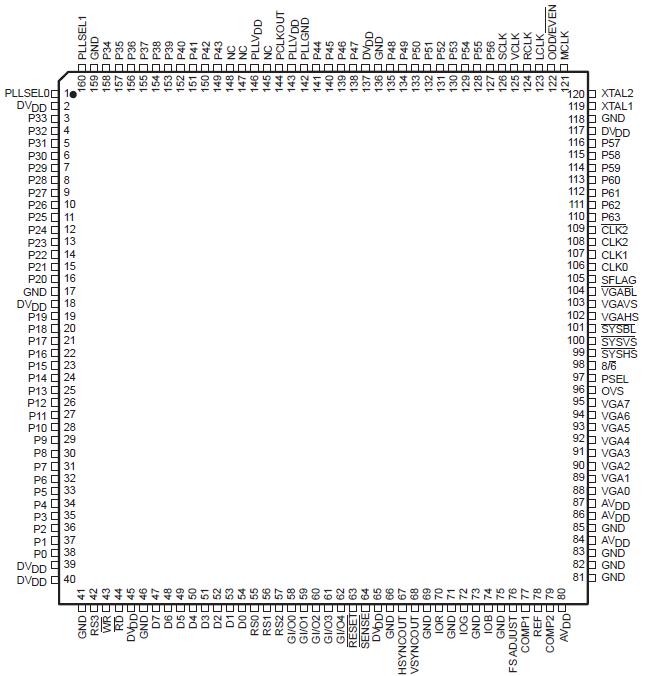

Connection Diagram


Specifications

Supply voltage, VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VDD + 0.5 V
Analog output short-circuit duration to any power supply or common . . . . . . . . .  unlimited
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175°C
Case temperature for 10 seconds, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . .260°C
