TVP3010C

Features: • Second-Generation Video Interface Palette• Supports System Resolutions of: 1600 * 1280 * 1, 2, 4, 8, 16 Bits/Pixel @ 60-Hz Refresh Rate 1280 * 1024 * 1, 2, 4, 8, 16 Bits/Pixel @ 60-Hz and 72-Hz Refresh Rate 1024 * 768 * 1, 2, 4, 8, 16, 24 Bits/Pixel @ 60-Hz and 72-Hz Ref...

product image

TVP3010C Picture
See larger image
SeekIC No. : 004533916 Detail

TVP3010C: Features: • Second-Generation Video Interface Palette• Supports System Resolutions of: 1600 * 1280 * 1, 2, 4, 8, 16 Bits/Pixel @ 60-Hz Refresh Rate 1280 * 1024 * 1, 2, 4, 8, 16 Bits/Pi...

TVP3010C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TVP3010C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Second-Generation Video Interface Palette
• Supports System Resolutions of:
  1600 * 1280 * 1, 2, 4, 8, 16 Bits/Pixel @ 60-Hz Refresh Rate
  1280 * 1024 * 1, 2, 4, 8, 16 Bits/Pixel @ 60-Hz and 72-Hz Refresh Rate
  1024 * 768 * 1, 2, 4, 8, 16, 24 Bits/Pixel @ 60-Hz and 72-Hz Refresh Rate
  And Lower Resolutions
• Direct-Color Modes:
  24-Bit/Pixel With 8-Bit Overlay
  16-Bit/Pixel (5, 6, 5) XGA Configuration
  16-Bit/Pixel (6, 6, 4) Configuration
  15-Bit/Pixel With 1-Bit Overlay (5, 5, 5, 1) TARGA Configuration
  12-Bit/Pixel With 4-Bit Overlay (4, 4, 4, 4)
• True-Color Modes:
  24-Bit/Pixel With Gamma Correction
  16-Bit/Pixel (5, 6, 5) XGA Configuration With Gamma Correction
  16-Bit/Pixel (6, 6, 4) Configuration With Gamma Correction
  15-Bit/Pixel (5, 5, 5) TARGA Configuration With Gamma Correction
  12-Bit/Pixel (4, 4, 4) With Gamma Correction
• RCLK/SCLK/LCLK Data Latching Mechanism to Allow Flexible Control of VRAM Timing
• Direct Interfacing to Video RAM
• Support for Split Shift Register Transfers
• Supports 64-Bit-Wide Pixel Bus
• On-Chip Hardware Cursor:
  64 * 64 * 2 Cursor (XGA Functionally Compatible)
  Full-Window Crosshair
  Dual-Cursor Mode
• 85-,110-,135-, and 170-MHz Versions
• Supports Overscan for Creation of Custom Screen Borders
• Versatile Pixel Bus Interface to Support Little- and Big-Endian Data Formats
• Windowed-Overlay and VGA Capability
• Color-Keyed Switching of Direct Color and Overlay
• On-Chip Clock Selection
• Internal Frequency Doubler
• Triple 8-Bit D/A Converters
• Analog Output Comparators
• Triple 256 * 8 Color-Palette RAMs
• RS-343A Compatible Outputs
• Direct VGA Pass-Through Capability
• Palette-Page Register
• Horizontal Zooming Capability
• Software Downward Compatible With IMSG176/8 and Bt476/8
• Directly to Graphics Processors
• EPIC 0.8-m CMOS Process


Pinout

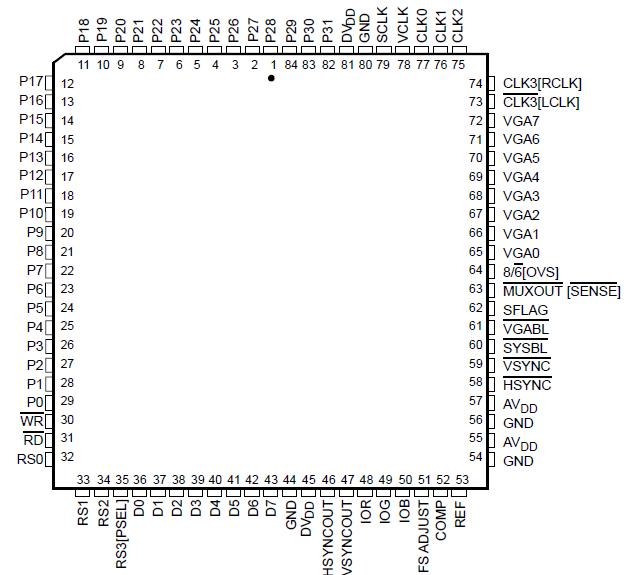

Connection Diagram


Specifications

Supply voltage, AVDD, DVDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VDD + 0.5 V
Analog output short-circuit duration to any power supply or common . . . . . . . . . . . . .  unlimited
Operating free-air temperature range, TA: TVP3010C . . . . . . . . . . . . . . . . . . . . . . . .0 to 70
                                                                   TVP3010M . . . . . . . . . . . . . . . . . . . . .55 to 125
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150
Virtual Junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175
Case temperature for 10 seconds, TC: FN and GA package . . . . . . . . . . . . . . . . . . . . . . . . .260
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . .  260
