TUSB5152

Features: • Fully compliant with USB release 1.1 specifications• Supports 12-Mbps USB data rate (full speed)• Supports USB suspend and resume operations• One upstream port and five downstream ports (full and low speed)• Can support a total of 8-input and 8-output endp...

product image

TUSB5152 Picture
See larger image
SeekIC No. : 004533866 Detail

TUSB5152: Features: • Fully compliant with USB release 1.1 specifications• Supports 12-Mbps USB data rate (full speed)• Supports USB suspend and resume operations• One upstream port an...

TUSB5152 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TUSB5152
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully compliant with USB release 1.1 specifications
• Supports 12-Mbps USB data rate (full speed)
• Supports USB suspend and resume operations
• One upstream port and five downstream ports (full and low speed)
• Can support a total of 8-input and 8-output endpoints
• Dual-enhanced UARTS
• Integrated 8052 microcontroller with
• 256 × 8 RAM for internal data
• 6K × 8 ROM (with USB and I2C boot loader)
• 16K × 8 RAM for code space. Totally loadable from host or I2C port.
• 2K × 8 synchronous RAM used for data buffers and EDBs
• Two 8052 GPIO ports, Port-1 and Port-3
• Master I2C controller for external device accesses.
• Supports external microcontroller interface for development ease
• Built-in five channel DMA controller for USB/UART/P-port bulk I/O
• Operates from a 6-MHz crystal. On-chip PLL generates 48/24 MHz and 7.384615 MHz for internal baud-rate generator.
• Power-down mode
• Available in 100 TQFP
• 3.3/5-V operation
• Software/hardware flow control
• Programmable Xon/Xoff characters
• Programmable auto-RTS*/DTR* and auto-CTS*/DSR*
• Automatic RS485-bus transceiver control, with and without echo
• Software selectable baud rate from 50 to 460,800 baud
• Programmable serial-interface characteristics
• 5-, 6-, 7- or 8-bit characters
• Even, odd, or no parity-bit generation and detection
• 1, 1.5 or 2 stop-bit generation
• Line break generation and detection
• Internal test and loop-back capabilities
• Modem-control functions (CTS*, RTS*, DSR*, DTR*, RI*, and DCD*)
• Internal diagnostics capability
• Loopback control for communications link-fault isolation
• Break, parity, overrun, framing-error simulation
• Compatible with standard CentronicsTM parallel interface
• Support for SPP, ECP and EPP modes with DMA support
• Direct connection to printer without external transceivers


Pinout

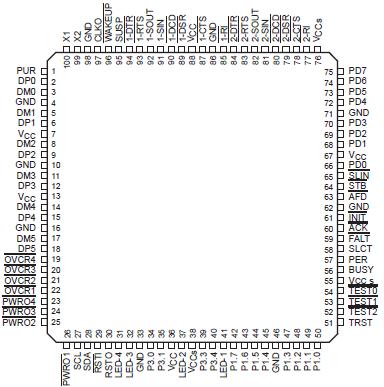

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to 5.5 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . 0.5 to VCC + 0.5 V
Output voltage, VO . . . .  . . . . . . . . . . . . . . . 0.5 to VCC + 0.5 V
Input clamp current, IIK . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK . . . .  . . . . . . . . . . . . . . . . . . . ±20 mA


Description

This TUSB5152 controller provides bridging between the USB, the dual-enhanced UARTS, and the IEEE-1284 bidirectionalparallel port. This device contains all the necessary logic to communicate with the host computer using the USB bus.In addition to the USB host interface, the device contains a 5-port hub that can be used for USB expansion. Theinternal 8052 microcontroller contains 16K RAM that can be loaded from the host. All the TUSB5152 device functions, such as the USB command decoding, UARTS/1284-port setup, and error reporting, are managed by the internal microcontroller unit (MCU) firmware
