TUSB3200

Features: • USB Specification version 1.1 compatible• USB Audio Class Specification 1.0 compatible• Integrated USB transceiver• Supports 12 Mb/s data rate (full speed)• Supports suspend/resume and remote wake-up• Supports control, interrupt, bulk and isochronous...

product image

TUSB3200 Picture
See larger image
SeekIC No. : 004533861 Detail

TUSB3200: Features: • USB Specification version 1.1 compatible• USB Audio Class Specification 1.0 compatible• Integrated USB transceiver• Supports 12 Mb/s data rate (full speed)•...

TUSB3200 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TUSB3200
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• USB Specification version 1.1 compatible
• USB Audio Class Specification 1.0 compatible
• Integrated USB transceiver
• Supports 12 Mb/s data rate (full speed)
• Supports suspend/resume and remote wake-up
• Supports control, interrupt, bulk and isochronous data transfer types
• Supports up to a total of 7 in endpoints and 7 out endpoints in addition to the control endpoint
• Data transfer type, data buffer size, single or double buffering is programmable for each Endpoint
• On-Chip adaptive clock generator (ACG) supports asynchronous, synchronous and adaptive synchronization modes for isochronous endpoints
• To support synchronization for streaming USB audio data, the ACG can be used to generate the master clock for the CODEC

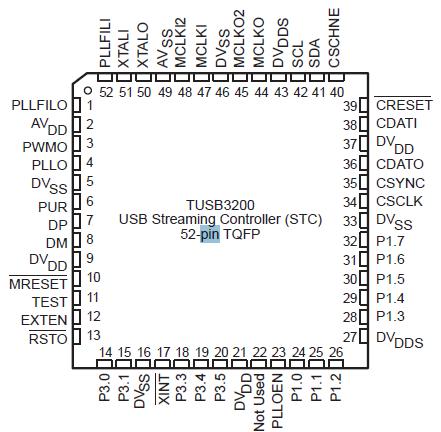

Pinout

Connection Diagram


Specifications

Supply voltage range, DVDD . . . . .. . ..  . . . . . . . . . . . . . . . . . . 0.5 to 3.6 V
                                    DVDDS . . . . . .  . . . . . . . . . . . . . . . . . . . 0.5 to 5.5 V
                                    AVDD . . . . .. . . . . . . . . . . . . . . . . . . . . . 0.5 to 3.6 V
Input voltage range, VI: 3.3-V TTL/LVCMOS . . . . . . . 0.5 V to DVDD + 0.5 V
5-V Compatible  . . . . . . . . . . . . . . . . . . . . .  . . . . . . 0.5 V to DVDDS + 0.5 V
5-V3.3-V TTL level shifting   . . . . . . . . . . . . . . . . .  0.5 V to DVDDS + 0.5 V
Output voltage range, VO: 3.3-V TTL/LVCMOS . . . . .  0.5 V to DVDD + 0.5 V
5-V Compatible  . . . . . . . . . . . . . . . . . .  . . .. . . . . .  0.5 V to DVDDS + 0.5 V
3.3-V5-V TTL level shifting   . . . . . .. . . . . . . . . . . . 0.5 V to DVDDS + 0.5 V
3.3-V5-V CMOS level shifting  . . . . . . . . . . . . . . . . 0.5 V to DVDDS + 0.5 V
Input clamp current, IIK (VI < 0 or VI > DVDD) . . . .. . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > DVDD)  . . . . . . . . . . . . . . ±20 mA
Storage temperature range, Tstg  . . . . . . . . . . . .. .  . . . . . . . 65 to 150
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
